Delmhorst Total Check 3 in 1 Flooring Moisture Meter Kit

Here’s everything you need to test the moisture content of concrete, wood and gypsum

Delmhorst’s TotalCheck three-in-one meter offers scan and pin moisture modes and a thermo-hygrometer that measures ambient Temperature and RH and calculates Dew point and GPP. Relative Humidity is a crucial factor to consider when installing a floor over a concrete sub floor. The RH sensor of TotalCheck is removable and conforms to the ASTM F-2170 standard to determine if concrete floors have dried adequately before installing a floor covering.

Pin Mode:

* 5%-60% wood scale
* Corrects for 69 individual wood species over the range of 5-60%MC
* Corrects for Temperature over the range of 0-255°F/-18-124°C
* 0.1% - 6% drywall scale
* 0-100 numerical reference scale for non-wood building materials

Scan Mode:

* 0-300 numerical reference scale

Thermo-hygrometer with RH sensor –conforms to ASTM F-2170

* Measures Temperature over the range of -4-158°F/ -20-70°C
* Measures RH over the range of 0-100%
* Calculates Dew point
* Calculates Specific Humidity (GPP)

General Features

* Connector for external Electrodes
* On-screen reading recall of up to 1400 stored readings
* Date and time stamp for each stored reading
* Job groupings
* Infrared linking to PC or laptop
* Application software - generate reports and manage data
* Includes 9V battery, 1-year warranty, carrying case

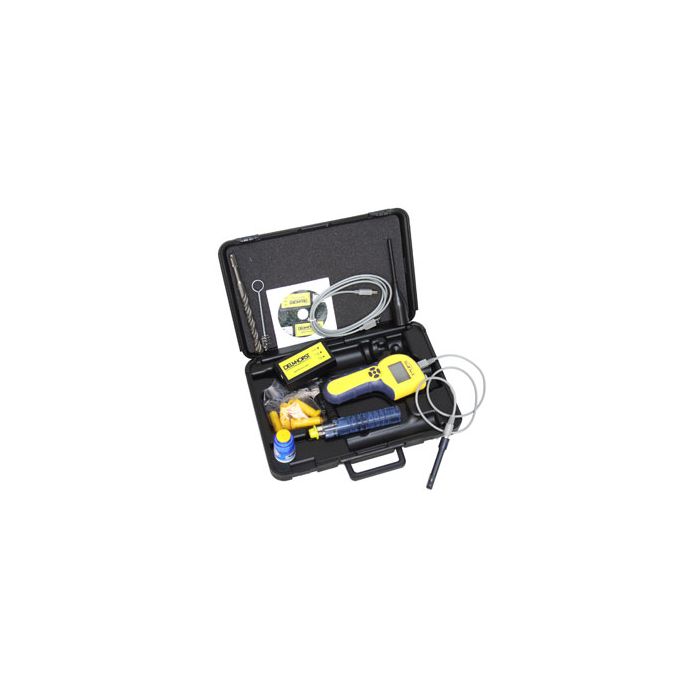

DI-2000 Kit Contents

• TOTAL CHECK Meter
• Ten 2" sleeves DI.2200.20
• 1 Humidity probe w/cable DI.2500.05
• 1 Pin probe (for testing wood) DI.2E
• Computer software
• Carry case

and NOW INCLUDES:

• 1 Drill bit DI.625.DRILL
• Wire brush
• Vacuum nozzle
• Salt Solution 75% DI.SALT.75

Download Instruction Flyer
