Pre-Pitch Standard Kit (6/pkg)

More Views

Pre-Pitch Standard Kit (6/pkg)

Store SKU # 10-PPK-201

Be the first to review this product

In stock

Price: $22.99
Ships FREE on orders over $75.
Add Items to Cart

Quick Overview

Pre-Pitch is a unique, stay in place screeding tool designed for use underneath shower pan liners. The first product to be installed, Pre-Pitch creates the proper sub floor pitch (1/4" per 12" run) needed to direct water flow towards the weep holes that are an integral part of shower floor drains.

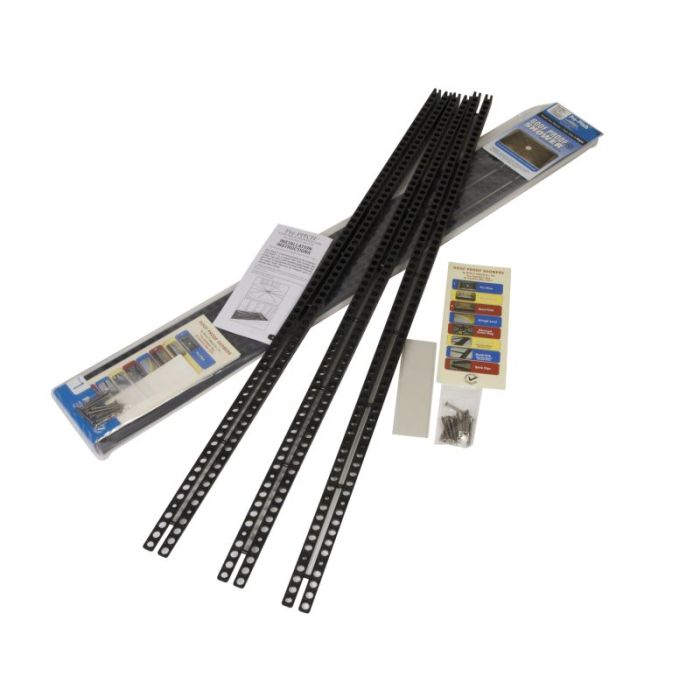

The No. PPK-201 Standard Kit includes 6 float sticks (1/8" to 7/8" taper x 36" long), screws and tape.

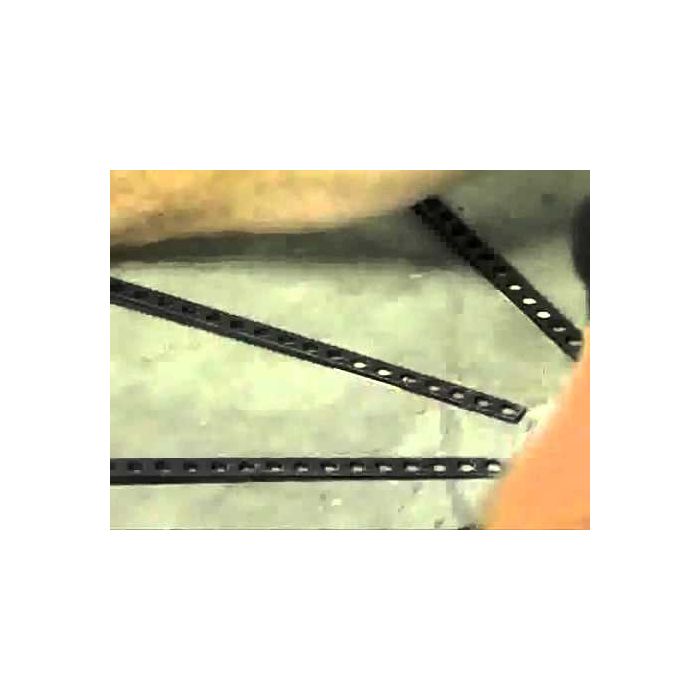

View Product Video!

Pre-Pitch is a unique, stay in place screeding tool designed for use underneath shower pan liners. The first product to be installed, Pre-Pitch creates the proper sub floor pitch (1/4" per 12" run) needed to direct water flow towards the weep holes that are an integral part of shower floor drains. By having a pitch under the pan liner, water that passes through the mud bed is now directed to the weep holes instead of being trapped between the mud bed and the liner where many mold and mildew realated issues originate. The Pre-Pitch sticks have holes in their vertical web which helps to act as reinforcment and are easily cut with a hacksaw, PVC cutter or dry diamond blade. For wood subfloors, Pre-Pitch can be screwed or nailed in place. For concrete subfloors, use two sided tape. Subfloor must be level, sound and properly prepared prior to installing Pre-Pitch.

No. PPK-201 Pre-Pitch Standard Kit
For standard shower areas with a centered drain, or custom shower areas where the drain is within 36" of each wall. For shower areas where the walls are more than 36" (but less than 72") from the floor drain, also use Pre-Pitch Extended Kit shown below. Sticks measure 1/8" to 7/8" taper x 36" long. Sold 6 per package. Screws and tape included.

View Installation PDF

View Specs PDF

View Installation Video

View full product video
