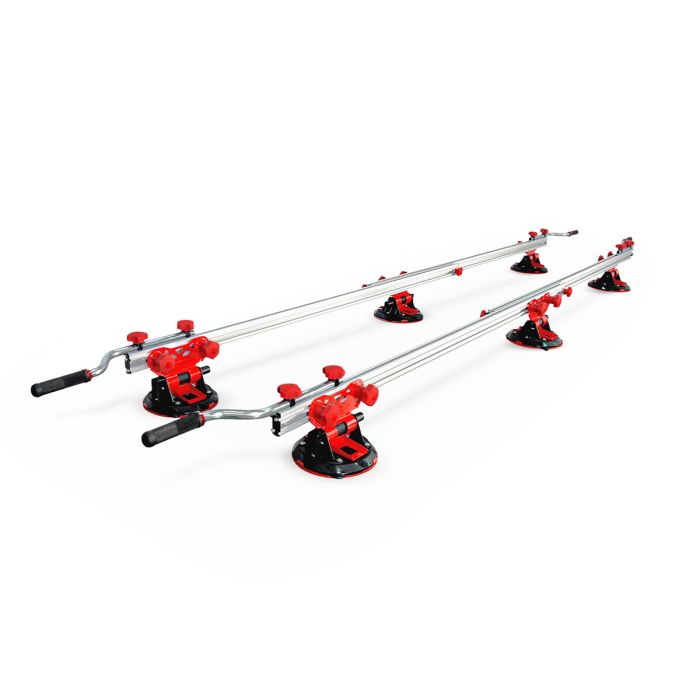

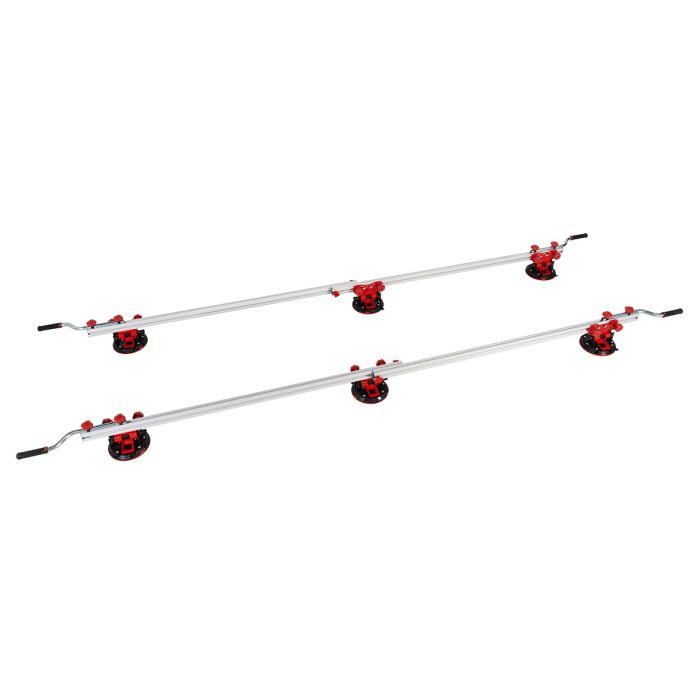

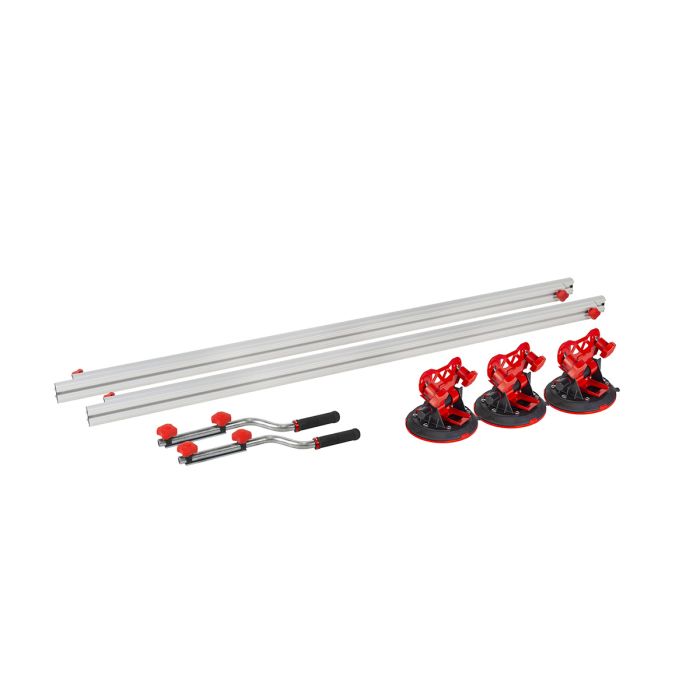

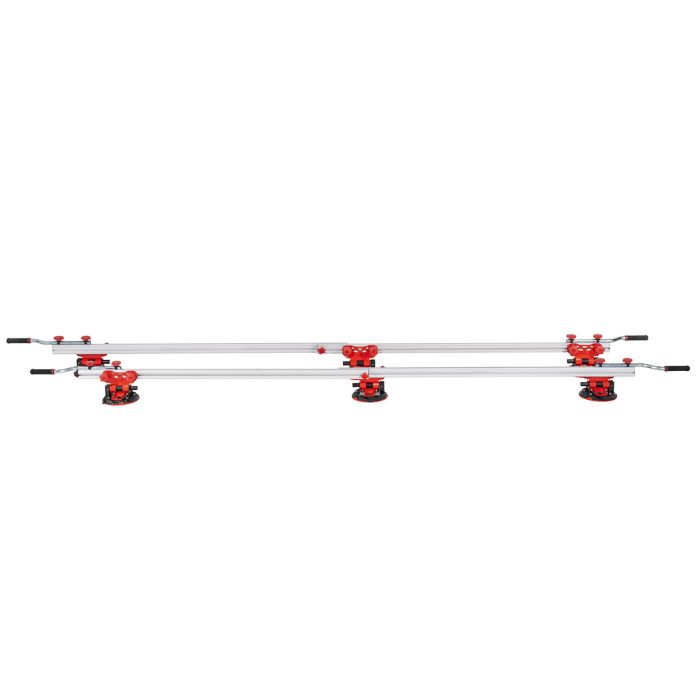

Rubi Slim Easy Trans Plus Conveyor

The Slim Easy Trans Plus transport system has been designed for handling porcelain panels with a maximum thickness of .23 inches (6mm). Thanks to the system of retractable reinforced aluminum profiles, the conveyor can handle porcelain panels up to a maximum length of 10.4 ft. These retractable profiles can be adjusted in length from 5.5 ft to a maximum of 10.4 ft.

• Adjustable soft-grip handles for greater ergonomics and comfort during handling
• Carrier handles slide in and out through the top slot of the retractable guides for easy storage and transportation
• Maximum load capacity of the set is 176 lbs (80kg), but increases to 265.5 lbs (120kg) if cross bars (ref. 18819) are added
• With the use of the Crossbar Set (ref. 18819), the system is compatible with the Slab Transporter Trolley (ref. 18934) and Slab A-Frame (ref. 17900)
• Comes with 6 vacuum suction cups with a 8" diameter and a high load and holding capacity. The suction cups can slide and configure their position according to the format of the porcelain sheet
• NOTE: Adding more suction cups does not increase the maximum load capacity
