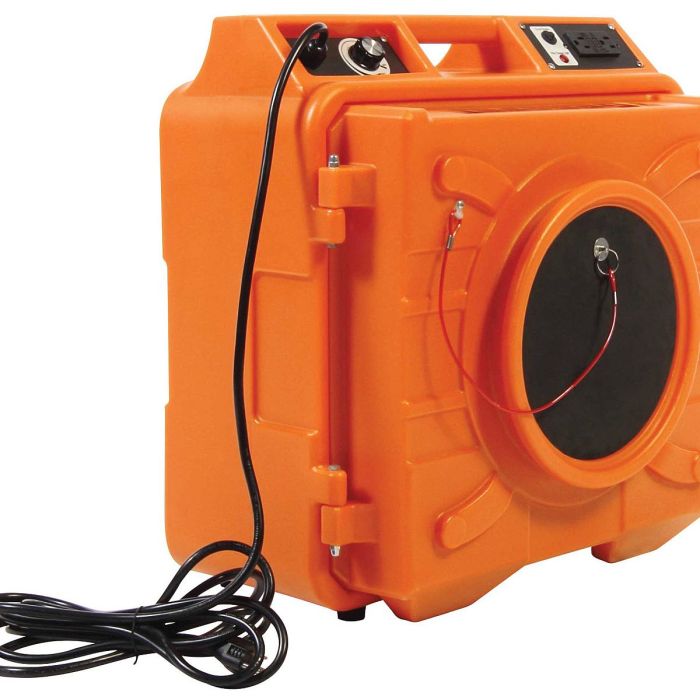

General Equipment AF501 Air-Scrub-R Portable HEPA Air Filter

The AF501 is a portable HEPA air filter providing a compact, efficient solution for air scrubbing/negative pressure air movement, as well as outstanding air filtration in a wide range of non-hazardous job applications. It features a two-stage design with a 30% pre-filter and 99.97% efficient HEPA secondary filter capable of capturing allergens and dust particles as small as 0.3 microns. An optional activated carbon filter can replace the pre-filter for absorbing a variety of volatile organic compounds (VOCs), smoke, and other noxious odors and contaminants. An indicator light alerts the user of when to change the filter for maintaining optimum airflow and filtration. The AF501 has a variable speed motor that provides adjustable airflow rates up to 500 CFM.

• Variable speed, up to 500 CFM maximum flow rate
• Daisy-chain up to 4 units on one circuit
• Optional lay flat duct connects to direct airflow outside of work area
• Panel light illuminates when airflow rates are reduced by dirty filter

Specifications:

Operating Environment: Nonhazardous type locations
Electric Motor: 1/4HP, 115 VAC, 60 Hz, variable speed
Power Requirements: 2.0 Amperes
Volume Flow: Variable up to 500 CFM (14.2 CMM)
Inlet Diameter: 9.5 inches (241 mm)
Outlet Configuration: 5 x 13 inches (127 x 330 mm) lay flat
Filtration System: 1st stage standard: 15.75 x 15.75 x 0.75 inch (400 x 400 x 19 mm) pleated media
1st stage (optional): 15.75 x 15.75 x 0.75 inch activated carbon for odor removal
2nd stage: 19 x 16 x 2 inch (483 x 406 x 51 mm) pleated HEPA, 99.97% @ 0.3 micron
Housing Construction: High density, UV resistant polyethylene
Fan Construction: Aluminum blades and hub
Integral GFCI: 15 Ampere rated duplex receptacle
Extension Cord: 16-3 SJT x 15 foot (4 m) length
Dimensions: 14.8 D x 23.8 W x 22.2 H inches (376 D x 605 W x 564 H mm)
Weight: 31 lbs (14 kg)
