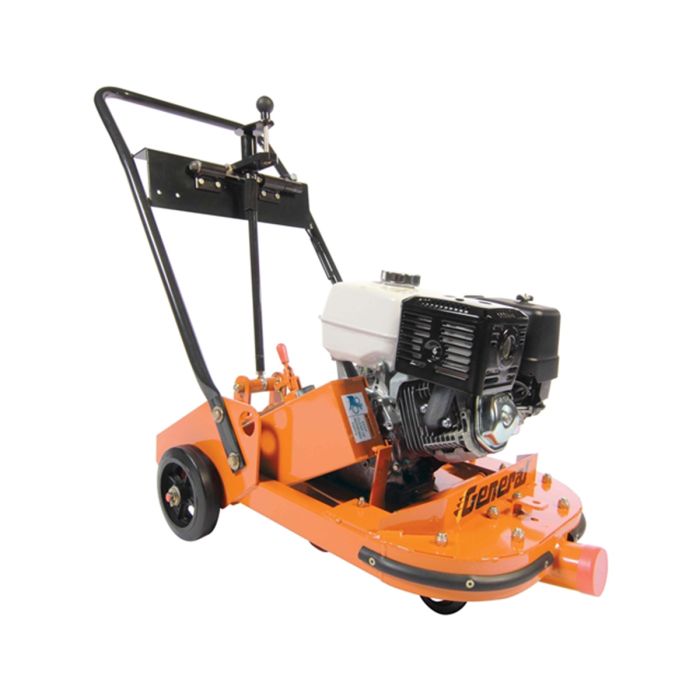

General Equipment CS8GH CrakChaser Random Crack Saw

The CS8GH CrakChaser is designed specifically for following and cutting irregular crack patterns in asphalt and concrete surfaces utilizing standard 8 inch (203 mm) diameter, dry-cut diamond blades. Produces smooth-sided cuts to a maximum cutting depth of 1-1/2 inches to prepare surfaces for proper crack filling procedures. Cutting cracks efficiently is all about maneuverability and a distinctive design feature is the center mounted blade configuration which better allows the operator to pivot the machine about its own axis, Operation feels more natural to the operator and allows him to better follow random crack patterns. Because the CS8 is pulled during operation, it affords excellent, direct line visibility versus side mounted saws. The integral dust pan helps collect the high volume of fines produced during the sawing process and directs them straight out and away from the operator for collection. An optional water mist control system is available for wet cutting applications.

• Honda® gasoline engine
• External bearing lubrication system
• Quik-Pitch™ engagement system
• Back-Saver™ fine pitch blade depth control system
• Center mount blade position
• Uses 8 in. dry-cut diamond blades (sold separately)

Specifications:

Engine: 13.0 HP (9.2 kw) Honda, GXV390, 4 stroke
Starter: Hand rewind
Fuel: Gasoline, unleaded, automotive grade
Frame: Unitized, welded steel plate
Blade Type/Diameter: Dry/8 inch (203 mm)
Maximum Blade Width: 1/2 inch (13 mm)
Drive System: V-belt reduction
Bearings: High capacity, twin row, ball-type
Arbor Shaft Diameter: 1 inch (25.4 mm)
Dust Port Connection: 3 inch (76 mm) diameter
Dimensions: 52" L x 27-1/2" W x 43" H
Weight: 290.0 lbs (131.5 kg)
