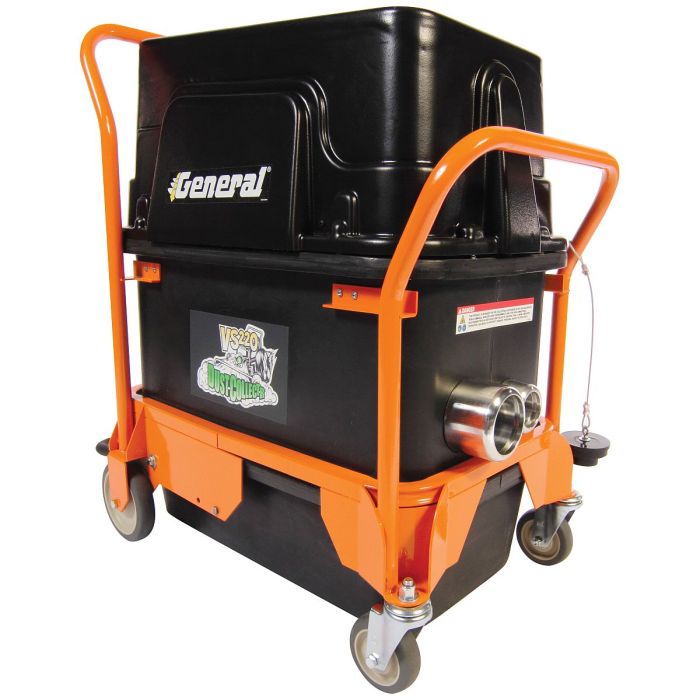

General Equipment VS220 Dust-Collect-R Vacuum System

The Model VS220 is a powerful, portable dust collection system that features separate 2 and 3 inch diameter dust port connections for dual-task capability and increased productivity. The heavy-duty design and HEPA filtration system ensure a long service life while keeping your jobsite OSHA compliant. Comes standard with 25 feet of 3 inch diameter flexible hose and coupler. Operates from standard 115VAC, 60HZ power source.

• For use in nonhazardous work locations as defined by the National Electric Code
• Dual electric motors allow reduced duct collection performance on limited electrical power availability
• Manual primary filter shaker system
• Pressure gauge tells operator when filter requires cleaning
• Replaceable primary and HEPA filters

Specifications:

Operating Environment: Nonhazardous type locations
Electric Motor: Two, 115 VAC, 60 Hz, single speed
Peak Horsepower (2 Motors): 2.6
Maximum Amperage (2 Motors): 17 Amperes
Volume Flow: 220 CFM (6.3 CMM)
Water Lift (suction): 110 Inches (2794 mm)
Filter Size: 18.3 square feet (1.7 square meters)
Pre-Filter Construction: Geo-synthetic polyfelt
HEPA Secondary Filter Construction: PTFE pleated media
Dust Hopper Capacity: 12.5 US Gallons (47.3 L)
Construction: High density polyurethane housing and welded, steel frame
Extension Cord: 16-3 SJT x 25 foot (8 m) length
Dimensions: 34.5 L x 19 W x 35.3 inches H (876.3 L x 482.6 W x 896.6 mm H)
Weight (less hose/coupler): 100 lbs (46 kg)
