Grabo High Flow Portable Electric Vacuum Lifting Device

Name: Grabo High Flow Portable Electric Vacuum Lifting Device
Brand: GRABO
SKU: 450641
Price: 599 USD
Availability: OutOfStock

Details

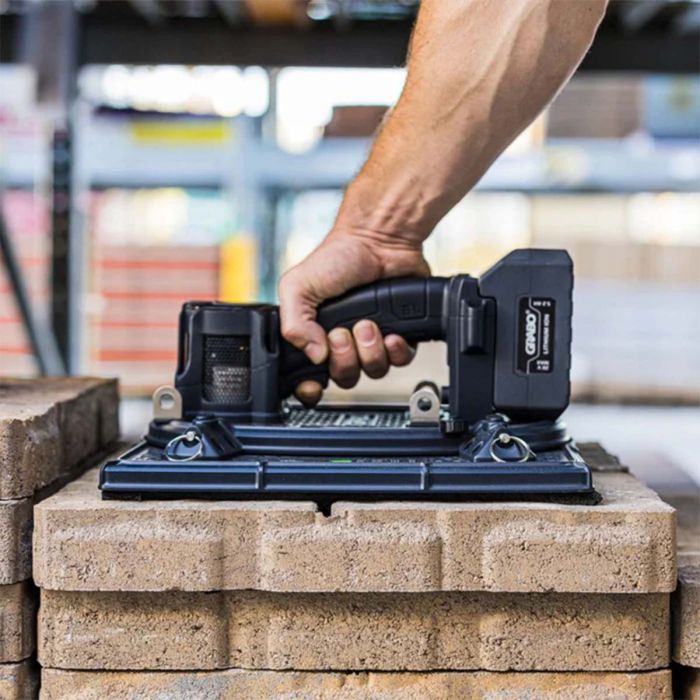

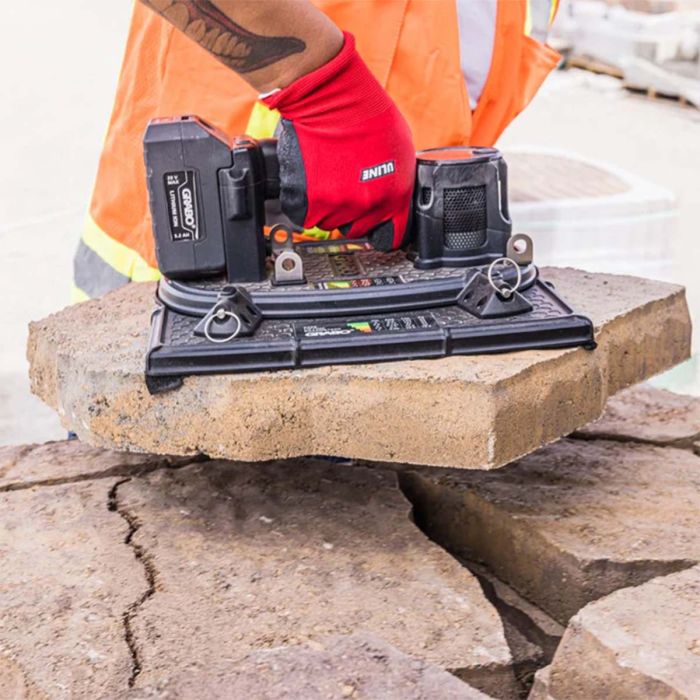

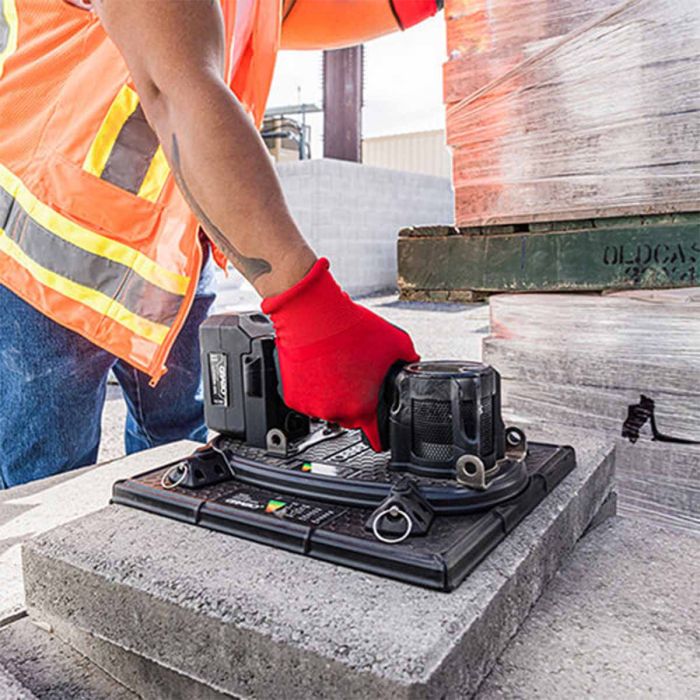

The GRABO High-Flow stands as GRABO’s most advanced tool with more power and improved vacuum technology, revolutionizing the way challenging objects are handled. This versatile, portable electric vacuum lifter effortlessly manages a variety of materials, including some of the most EXTREMELY porous materials out there. Its innovative design features a SMART CUT foam seal and a user-friendly T-handle, significantly simplifying and improving the ergonomics of laying outdoor pavers. Tailored for efficiency, the GRABO High-Flow excels in handling rough and highly porous materials such as Dry Cast Pavers, ensuring a firm grip and safe handling even on some of the most EXTREMELY textured material out there.

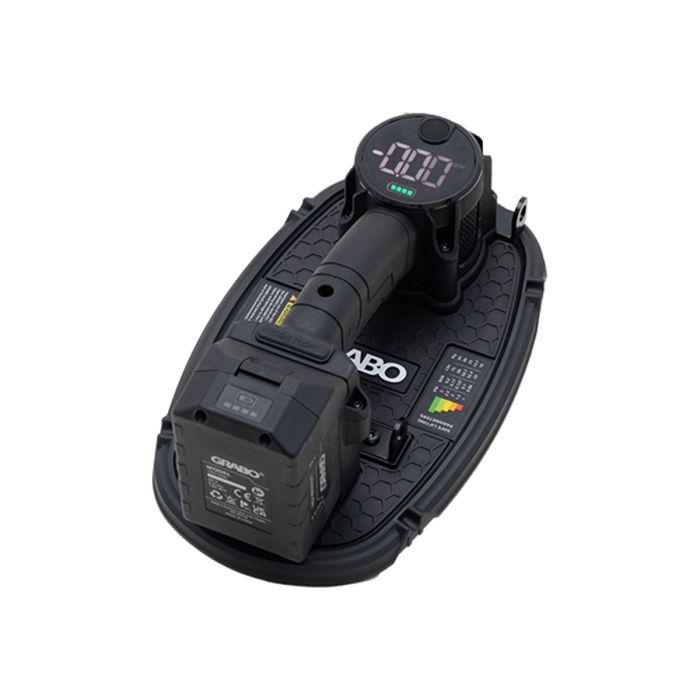

The top of the tool has a large LED digital display that shows your real time PSI or BAR pressure, so users will always know how much pressure the tool is creating with that specific material. With our new powerful GRABO 20 volt battery, the new high flow is rated to lift up to 242 lbs or 100 kgs when used on our new suction plate, the more force is created inside the vacuum chamber. For example, as you decrease the Suction Platesize down to our Suction plate 300, your weight limit decreases as well down to 150 lbs or 68 kgs.

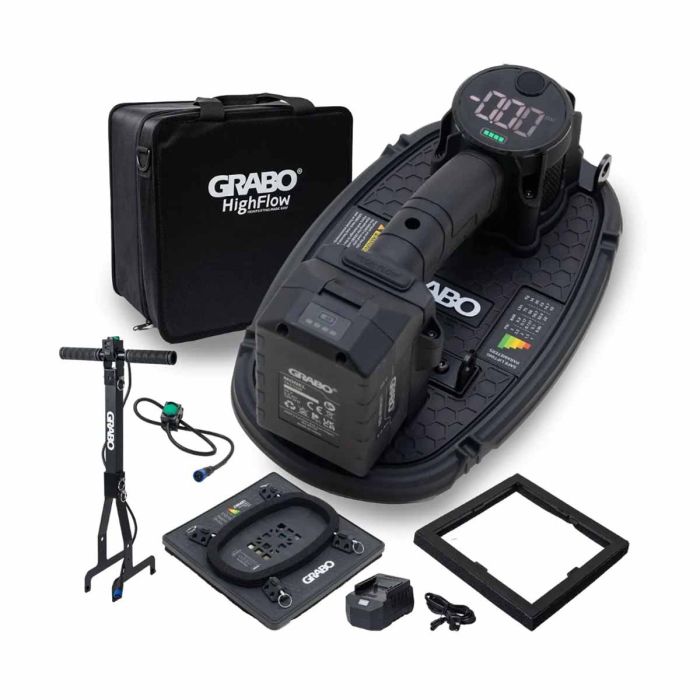

The GRABO High Flow Kit Includes:

Tool

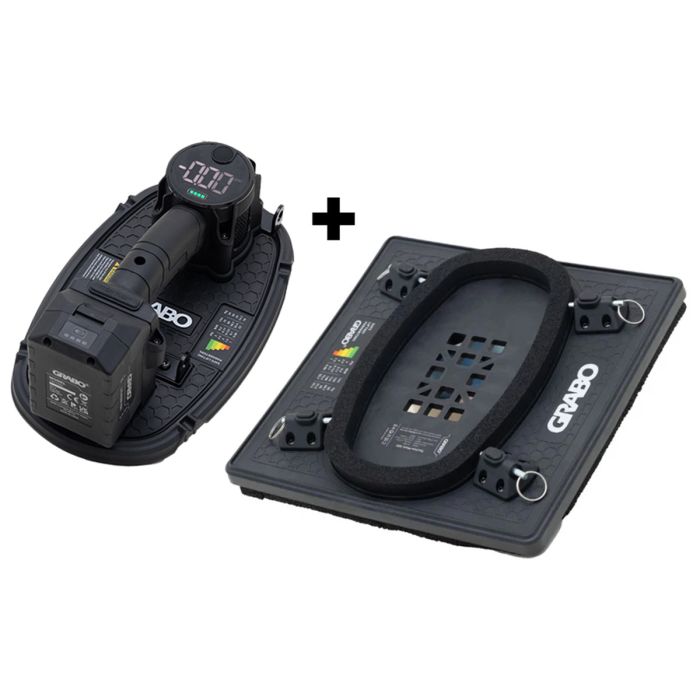

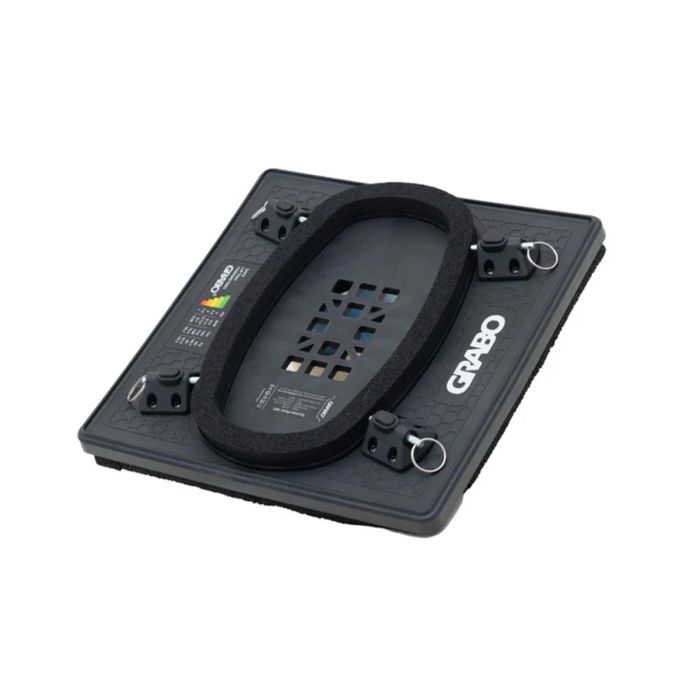

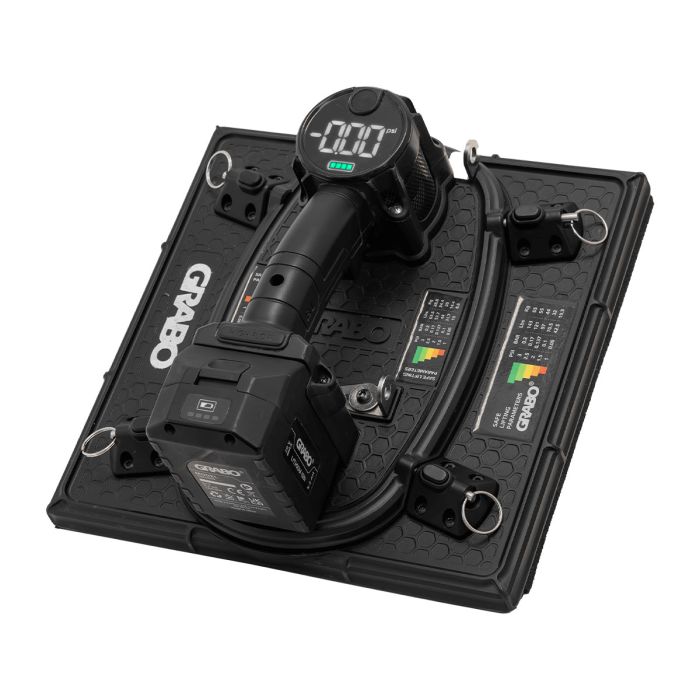

Suction plate 300 with SMART CUT foam seal
Two (2) GRABO High Flow Batteries

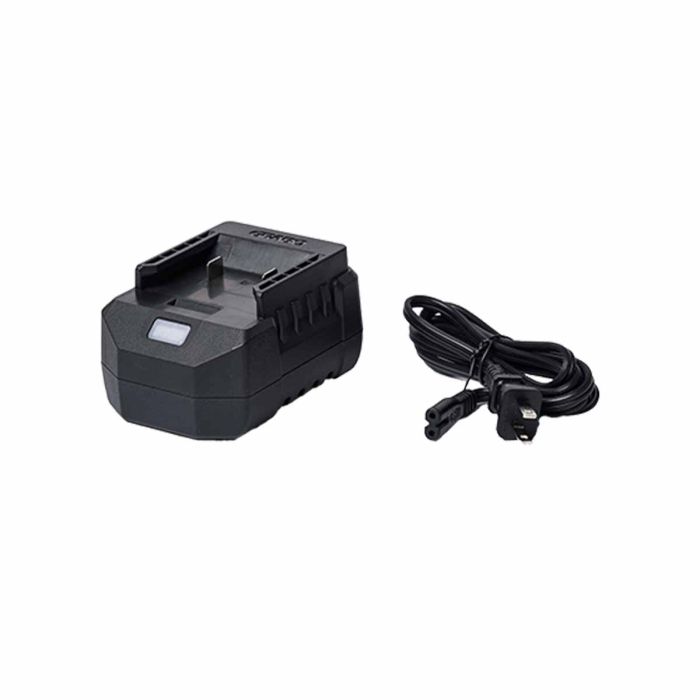

Battery Charger

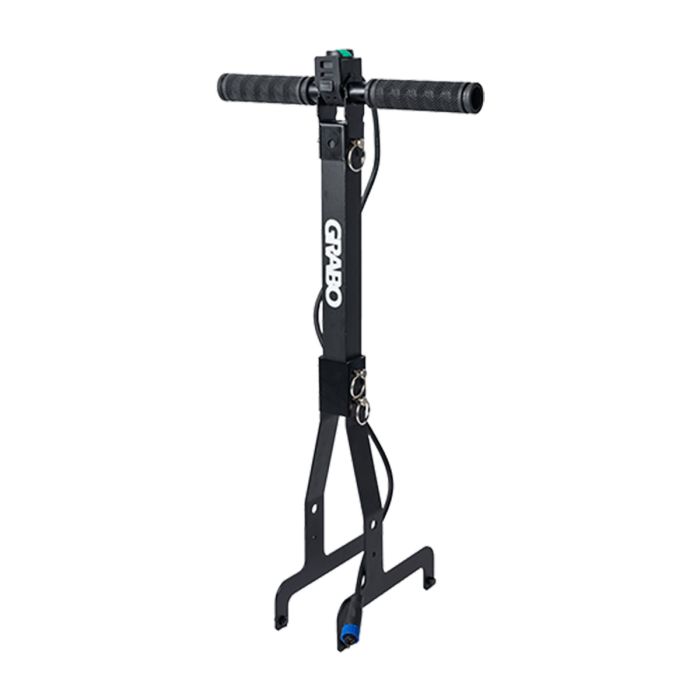

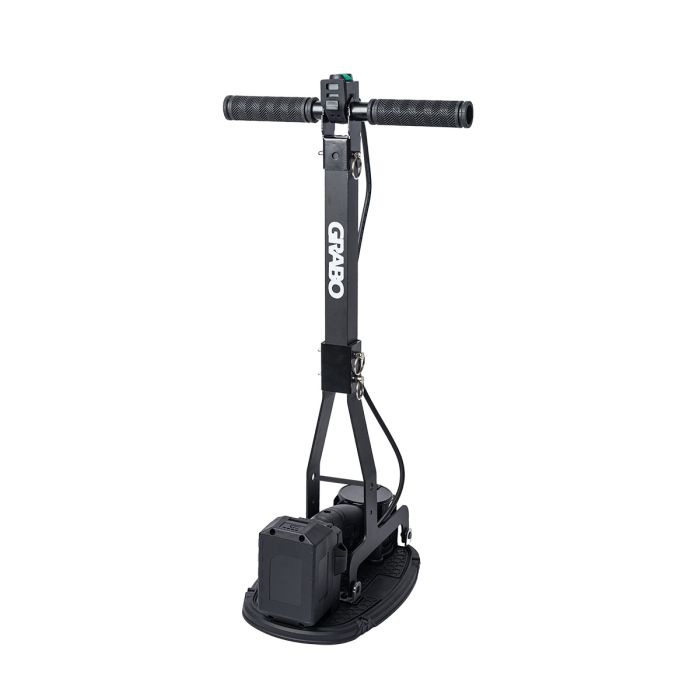

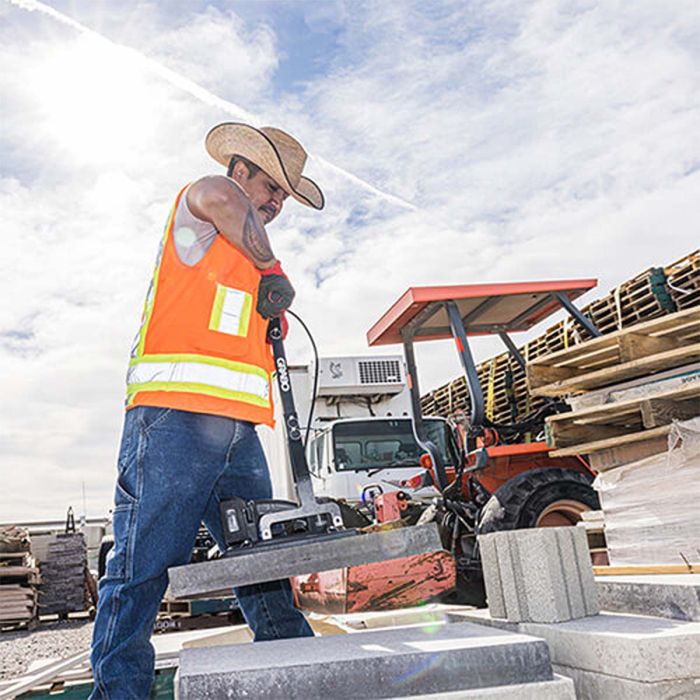

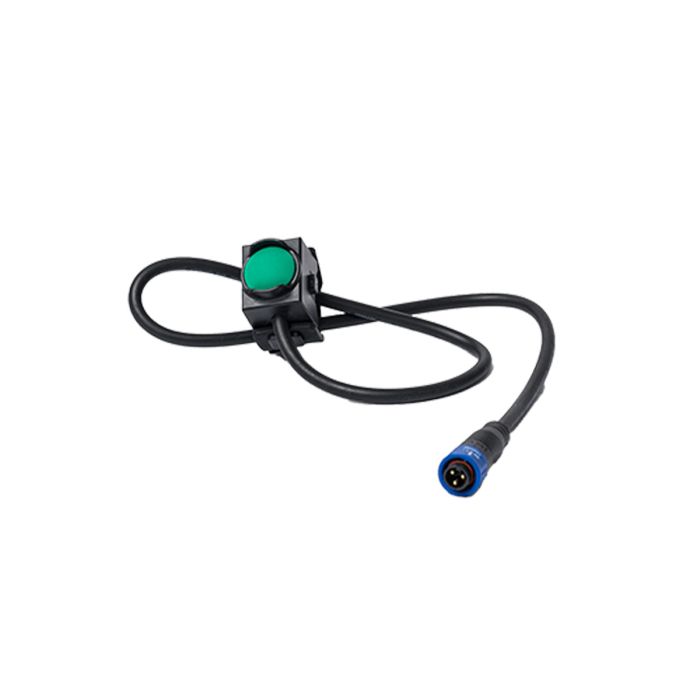

T-Bar handle attachment with wired remote control ON/OFF cable

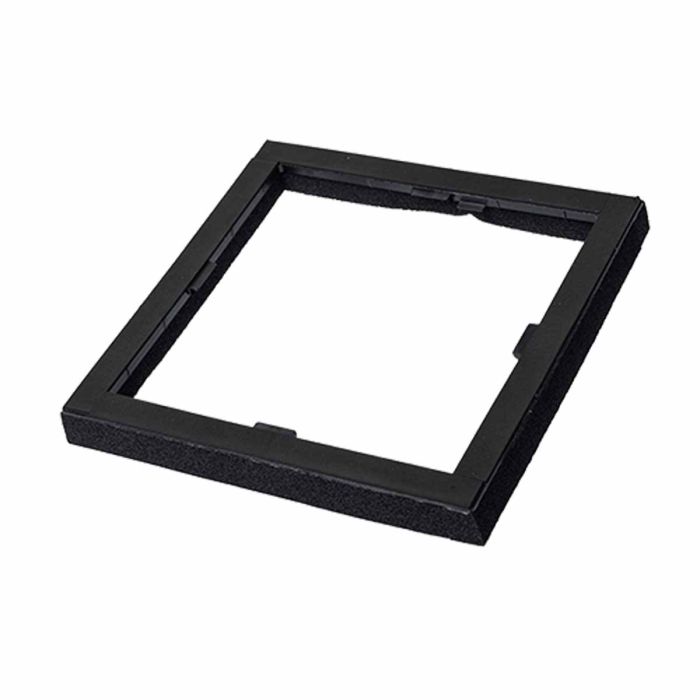

Spare SMART CUT foam seal 300
Extra Filter
Operator’s manual

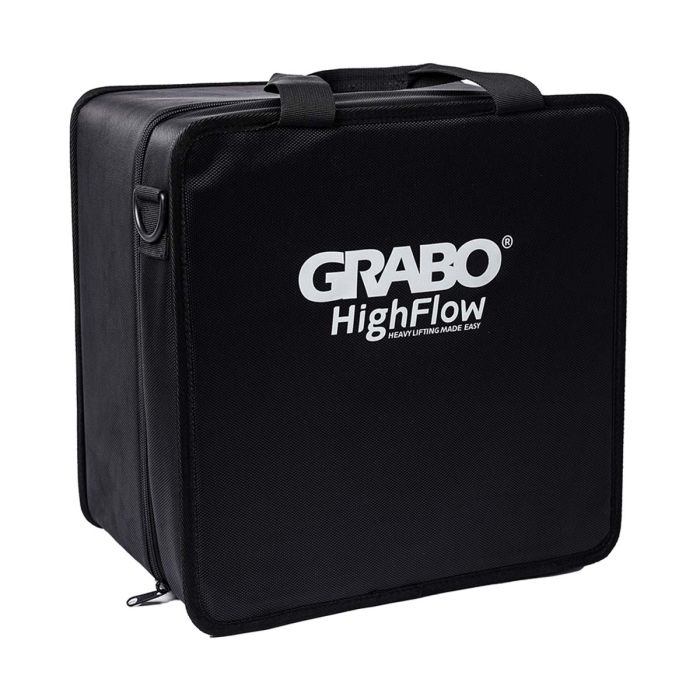

High Flow Canvas Carrying Case

GRABO High-Flow Electric Vacuum Lifting Device

Dimensions	300 x 184 x 148 mm / 11.8 x 7.2 x 5.8 inches
*Net weight (with the 300300 add-on and battery)**	2.9 kg / 6.4lbs
A-weighted sound pressure level	LpA=79.4 dB(A), uncertainty K=3 dB(A)
A-weighted sound power level	LwA=71.4 dB(A), uncertainty K=3 dB(A)
Vibration total value	1.240 m/s2, uncertainty K=0.11 m/s2
Rated power	160 W
Maximum vacuum rate	-0.20 Bar (-20 kPa)
Suction Plate 300 Dimensions	316 x 316 x 17.3 mm

Battery

Battery type	Model TB21000
Battery rated capacity	5.0 Ah
Nominal voltage / charge voltage	18 V / 21 V
Charge current	4 A
Working time (full charge)	30 mins
Operating temperature	32 – 115°F (0 – 45°C ) Charge -4 – 140°F (-20 – 60°C ) Discharge
Long-term battery storage (> 3 months)	0°C – 30°C / 32°F – 86°F charged to 18.5–19.5V (80–90% of full charge)

Battery Charger

Charging output voltage	21 V
Charging output current	3.6-4.4 A underload, 4.5 A max
Overcharge protection	4.25 V
Charging input	100 – 240 V AC; 50/60 Hz; 2A max.
Rated power	84W
Operating temperature	0°C – 40°C / 32°F – 104°F
Storage temperature	-10°C – 75°C / 14°F – 167°F
Working conditions	Indoor use only; not waterproof (IP0)
