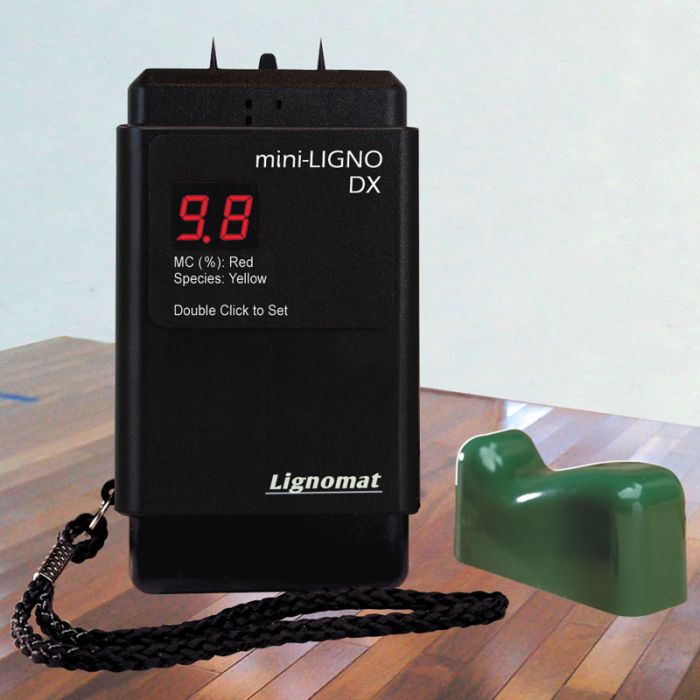

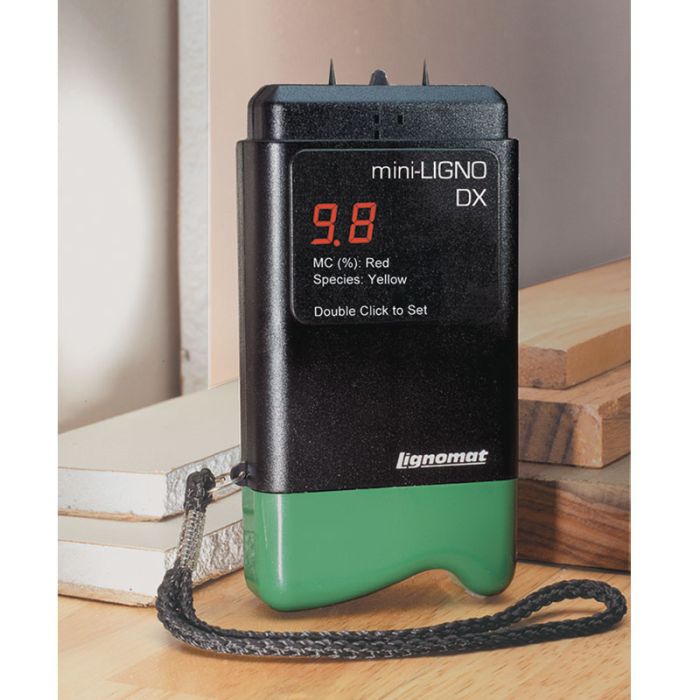

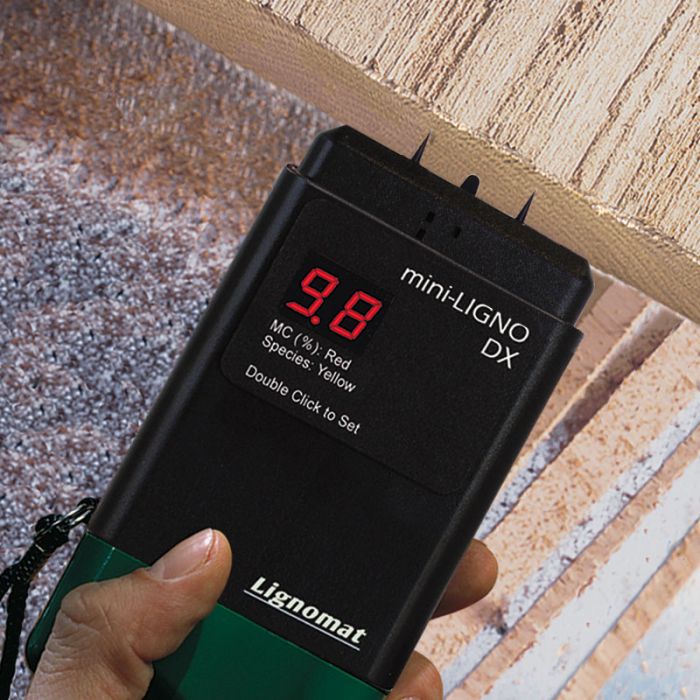

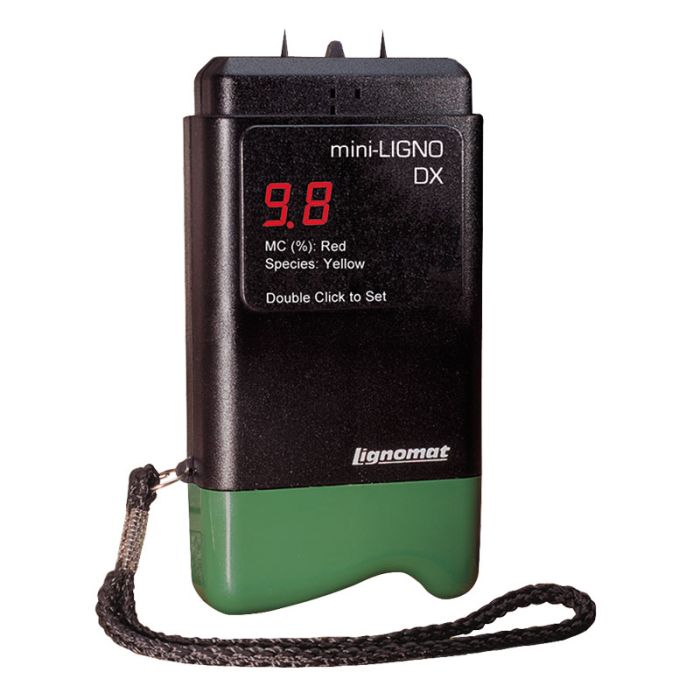

Lignomat Mini-Ligno DX Moisture Meter

The DX is one of our most popular meters. Convenient corrections for 20 different wood groups increase accuracy especially when working with many different wood species domestic or tropical.

For thicker wood longer pins are supplied with each mini-Ligno. For core readings in lumber from 6/4 on up, we recommend to make a fresh cut to reach the core. If cutting the wood is not feasible, choose the mini-Ligno DX/C to have the option of adding an external probe.

Measuring Range: 5-65% dependent upon species setting
Resolution: 0.1% for values below 10% and 1% steps above 10%
Species Corrections: 20 settings for wood species corrections with chart for domestic and tropical species
Reference Scale: 0-99 for non-wood building materials
Calibration Check: The calibration is internally checked and automatically adjusted if necessary
Pins: 2 pair of pins, measuring depth of 3/16" and 7/16" (5,10mm)
Size: pocket-size 2 3/4"x 5"x1" (70x140x25mm)
Weight: 8 ounces (200g), made out of high-impact plastic
Accessories: wrist strap and pouch, one 9V battery and 2 pair of pins
