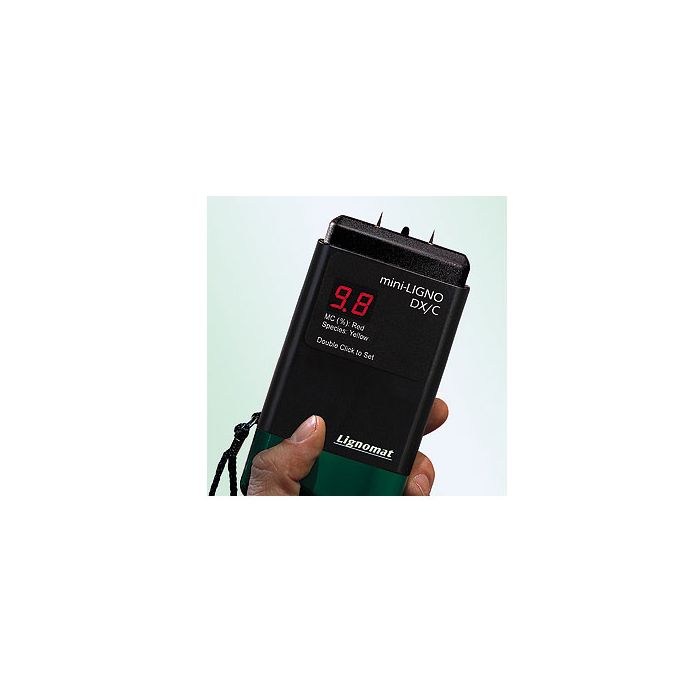

Lignomat Mini-Ligno DX/C with Electrode E12 in Case

The DX/C comes highly recommended by independent trade magazines for its accuracy, convenience and external probe capability. The DX/C combines all advantages of our pocket-size mini-Ligno meters and more:
- a perfectly designed case with built-in pins
- a wide measuring range for wood
- built-in corrections for 20 wood groups
- large display with easy-to-read numbers
- reference scale for non-wood building materials

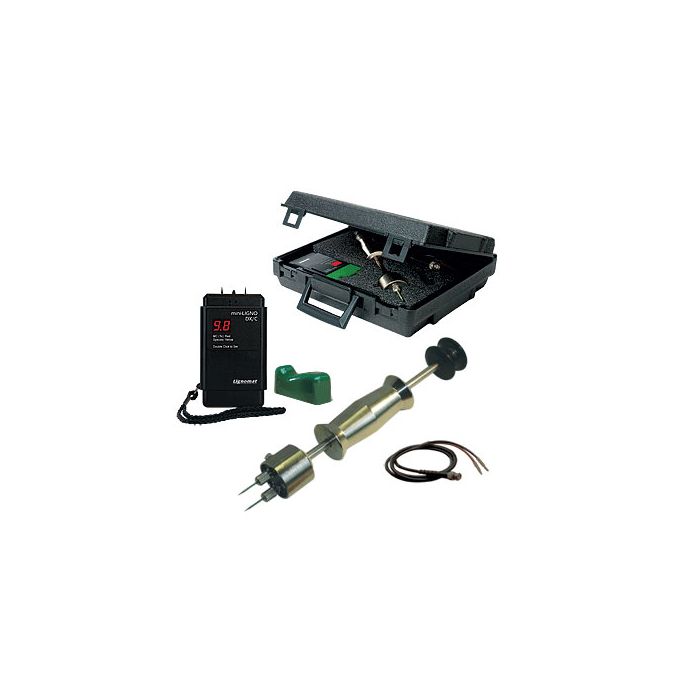

Popular D-2C Package Includes: mini-Ligno DX/C, Electrode E12, BNC-mini Cable , Case

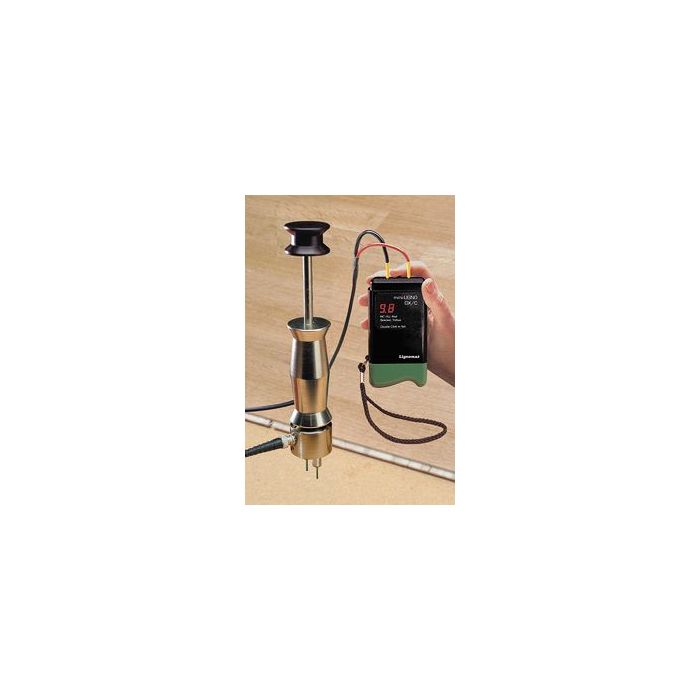

Measurements with the Electrode E12 are considered the industry standard in quality control. Moisture checks are recommended when the lumber comes off the truck, during storage, during various stages of manufacturing and at the inspection before shipping. Also for installing and inspecting hardwood floors.

As the teflonized pins are hammered towards the core consecutive readings indicate changes in moisture. Under or unevenly dried lumber can be easily detected.

Measuring Range: 5-65% dependent upon species setting
Resolution: 0.1% for values below 10% and 1% steps above 10%
Species Corrections: 20 settings for wood species corrections with chart for domestic and tropical species
Reference Scale: 0-99 for non-wood building materials
Calibration Check: The calibration is internally checked and automatically adjusted if necessary
Pins: 2 pair of pins, measuring depth of 3/16" and 7/16" (5,10mm)
Size: pocket-size 2 3/4"x 5"x1" (70x140x25mm)
Weight: 8 ounces (200g), made out of high-impact plastic
Accessories: wrist strap and pouch, one 9V battery and 2 pair of pins
