Rapid Recess Kit for Linear Drain at Shower Entry

Rapid Recess subfloor lowering kits - Designed to provide the necessary depth to install a true, zero-entry curbless shower.

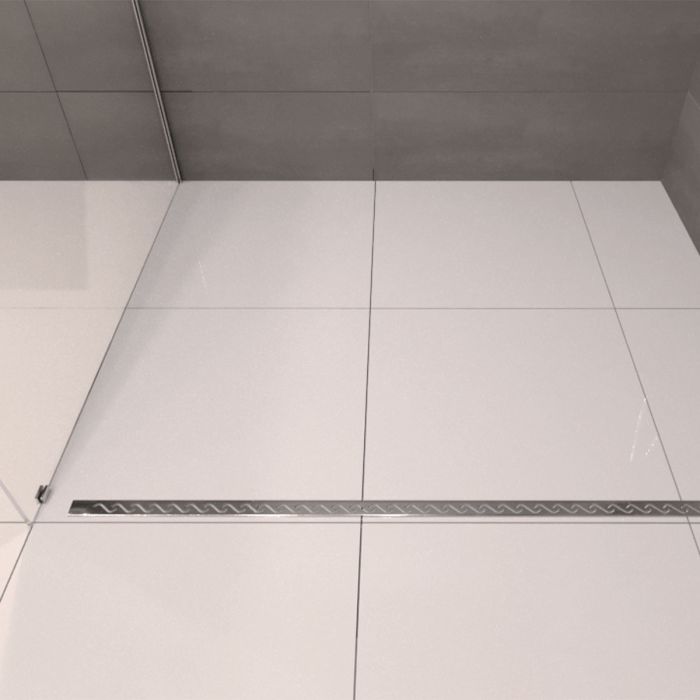

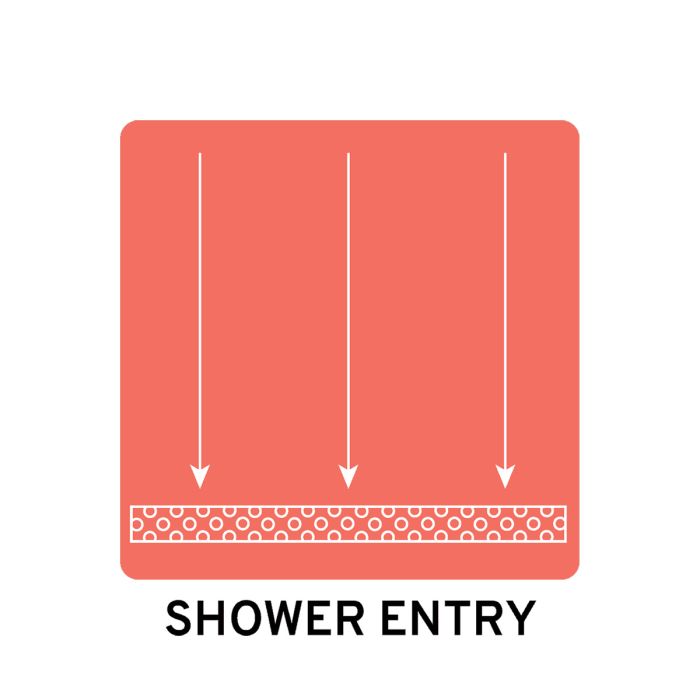

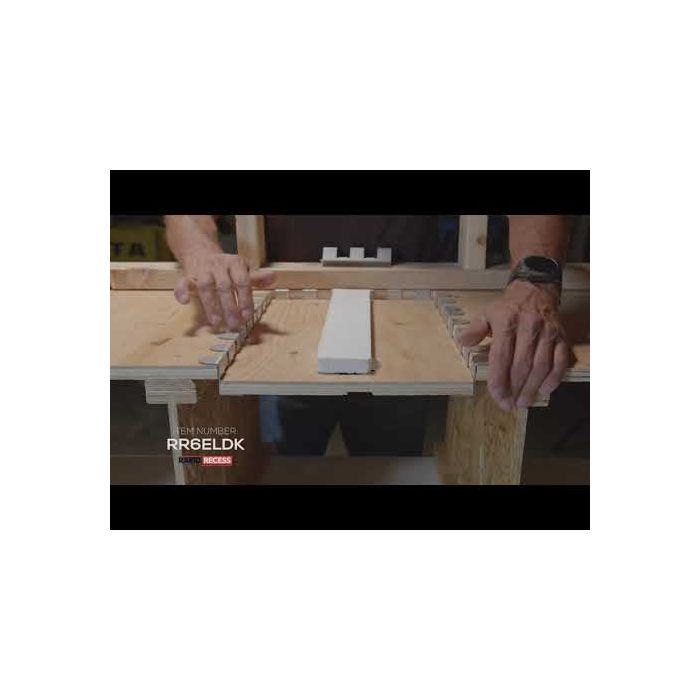

The Bracket Kit for Linear Drain at the Entry (Model RR6ELDK) is used with pre-manufactured or mortar shower pans with a linear drain. This kit is designed for linear drain installations when the drain cannot be installed at the back wall or if a drain at the entry is desired. The entry cutout in the plywood subfloor for the linear drain is recessed 11/16” to account for the drain depth. Suitable for linear drains up to 72” in length. Includes metal brackets for lowering entry cutout in plywood subfloor for linear drain.

• Installed from above the joists without the use of a 2×4 frame or compromising the structural integrity of the joists (Rapid Recess doesn’t interfere with plumbing or other obstacles between the joists)
• Used with different, types, widths and orientation of floor joists (joists parallel or perpendicular to shower entry)
• No framing ledger boards or cross-bracing needed
• Floor height within the lowered area is recessed by 11/16"
• Brackets are made of 16 gauge galvanized steel
• Kits available for point or linear drains and shower pans
• Complies fully with ICC standards and codes
• Manufactured in Colorado, USA

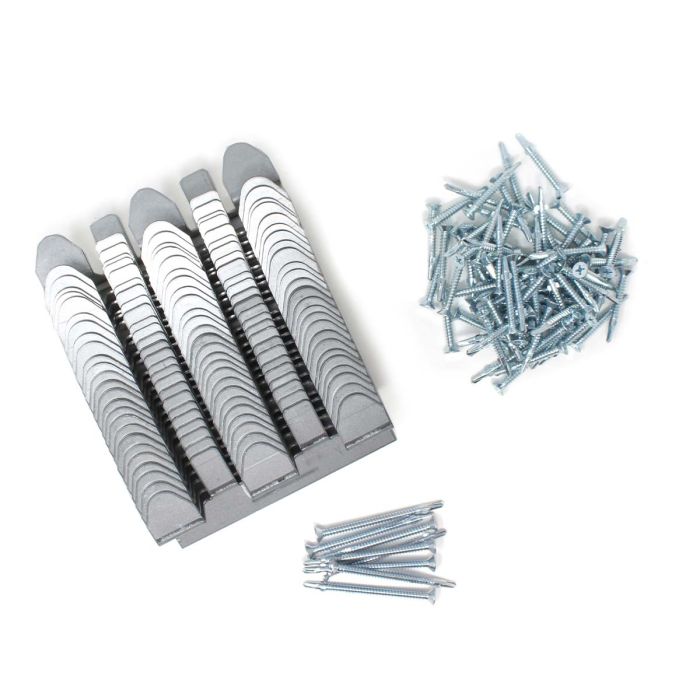

RR6ELDK Installation Kit Includes:

• Z bracket - 5" long recess parameter bracket (x26)
• #10 1 5/8” wood to metal self-drilling screws with wings (x80)
• #10 2 3/4” wood to metal self-drilling screws with wings (x8)
