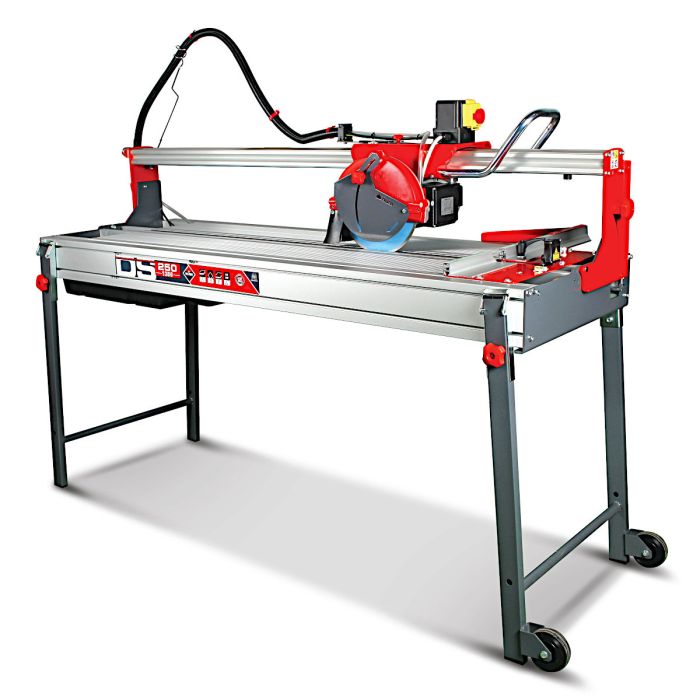

Rubi DS-250-N 1300 52" Laser & Level Tile Saw

The Rubi DS-250N 1300 is a professional heavy duty 3 HP tile saw for cutting ceramic, granite, porcelain, marble and other materials. This is the upgrade from the old DS250 1300. It includes a 10" premium porcelain diamond blade, laser, level, water pump, power cable and "zero dust" attachment.

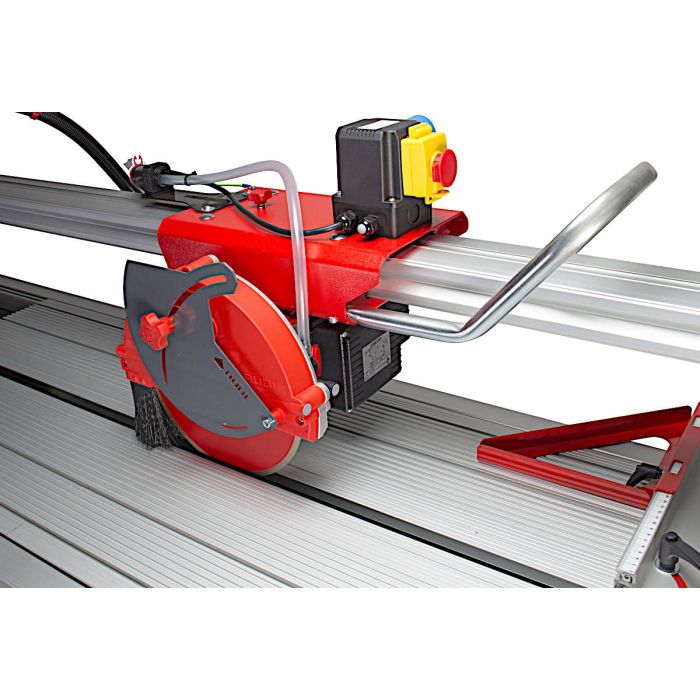

• Motor assembly mounted on sliding bearings for maximum precision and reliability, perfect finishes.
• Aluminum structure. Lighter, and maximum resistance to working conditions.
• Robust aluminum guide, folding at 45°, perfect miter.
• It does not plunge cut.
• Removable aluminum tables for easy cleaning of the machine.
• With overload security switches.
• Safety protector for segmented blades.
• With a double set of flanges, one especially designed for miter cuts.
• With lateral stop for repetitive cuts.

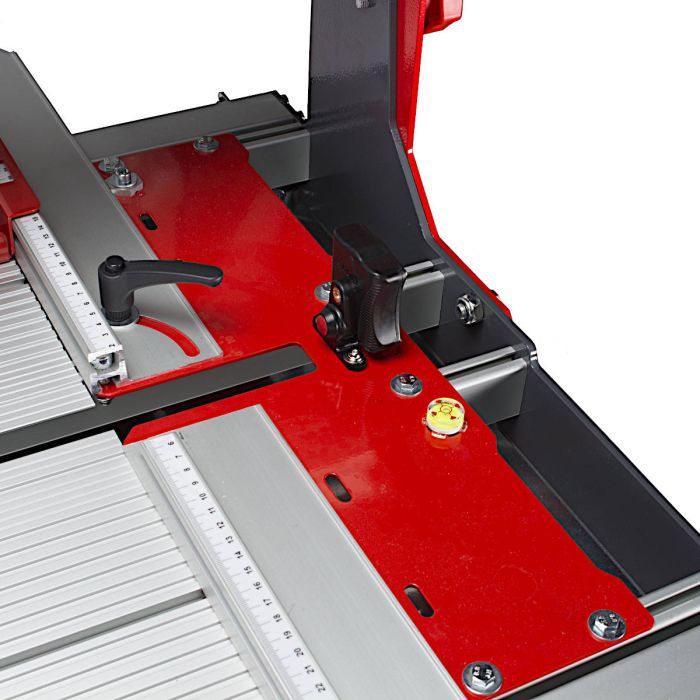

• 2mW line laser.
• Level for easy field installation.
• Water pump refrigeration of blade with flow control valve.

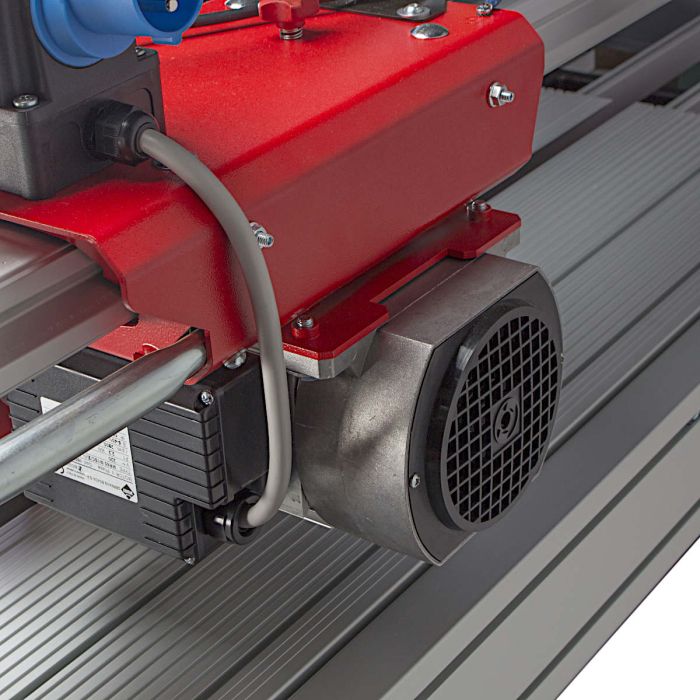

• Powerful direct drive 3 HP motor
• Max cutting length: 51.96"
• Max diagonal cut: 36" x 36"
• Max cutting thickness: 2-1/16"
• Arbor size: 1"
• Dimensions: 78" x 28" x 16" (height without legs)
• Weight: 212.74 lbs
• Voltage: 120V - 60Hz
• Power: 3hp. 3400 RPM.

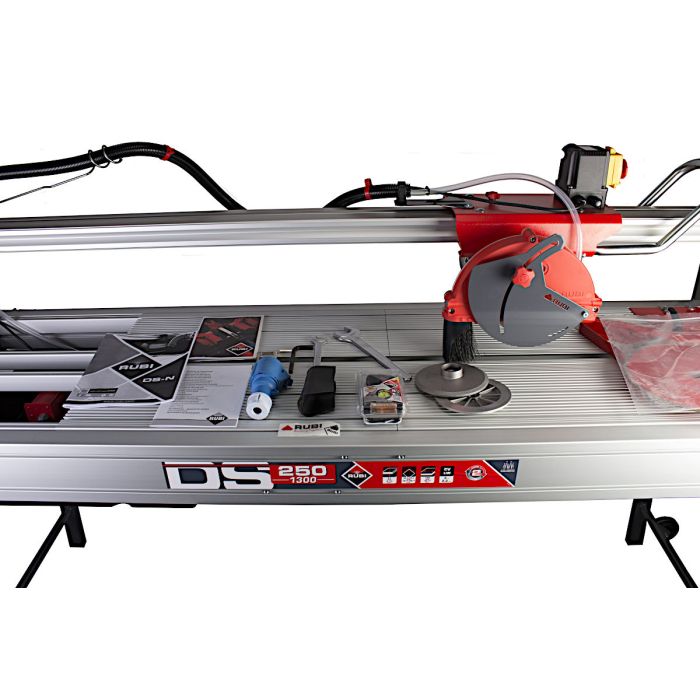

• Includes 10" Diamond Blade, water pump and cable
• 2 Year Warranty

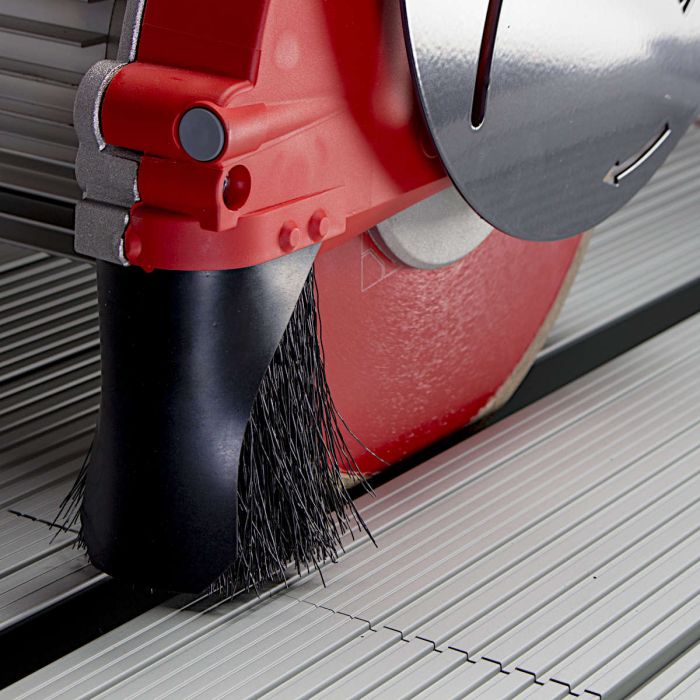

RUBI is strictly committed to the safety of professional tile installers. That's why Rubi has developed the ZERO DUST system in collaboration with TNO (The Netherlands Organization for applied scientific research) as part of the DUST FREE WORKING program. The ZERO DUST system reduces the amount of breathable quartz dust particles, providing a clean and safe working environment.
