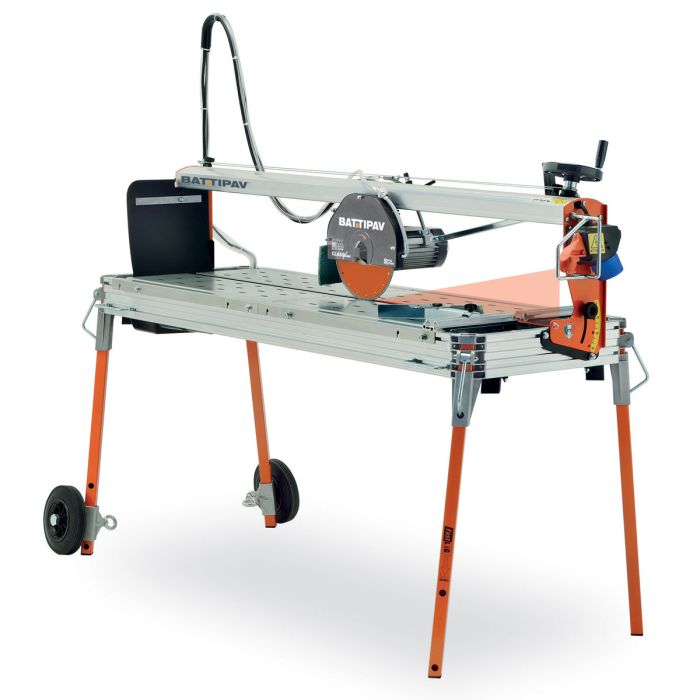

Battipav 51" Class Plus 1300S Rail Saw
- SKU:
- 450636
SHIPS DIRECT FROM MANUFACTURER - Usually ships within 3-5 business days
$3,195.00

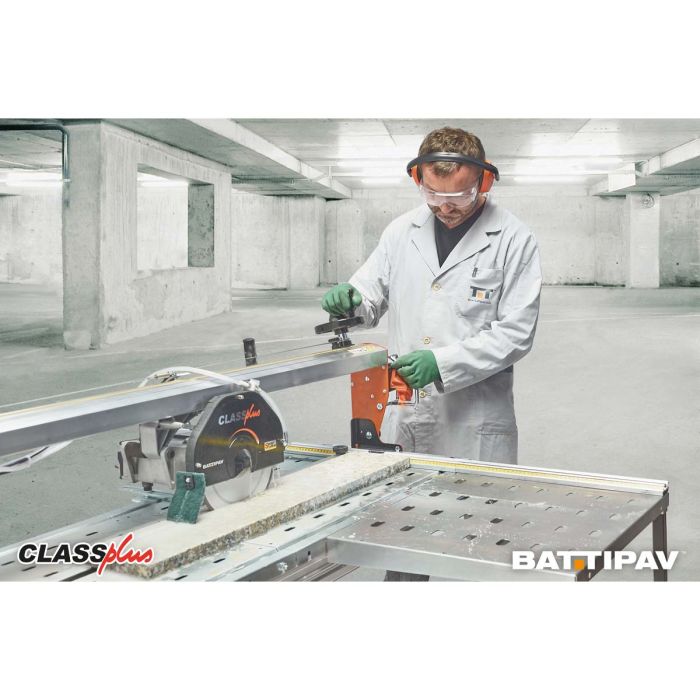

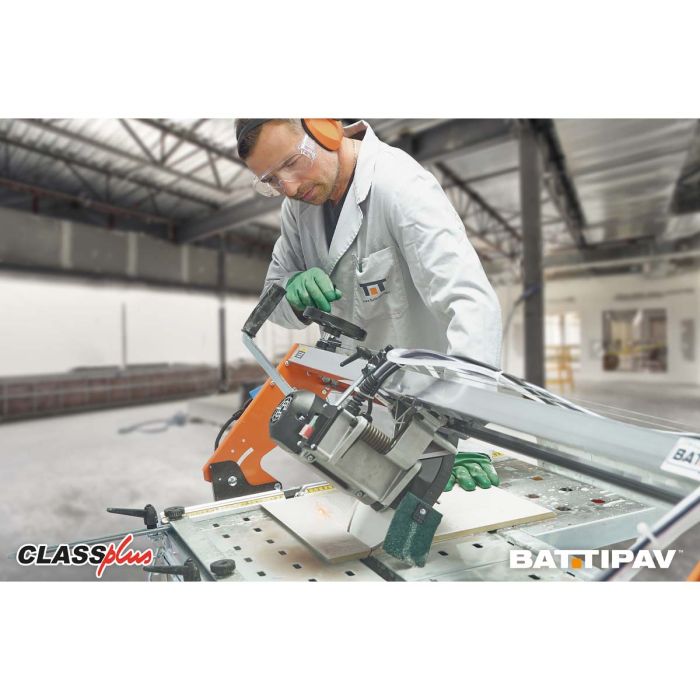

Embrace the next level of tile cutting excellence with the Battipav Class Plus Radial Tile Saw, expertly designed for unparalleled precision and strength in cutting porcelain stoneware, tiles, and marble.
The Battipav USA661351 Class Plus is a radial tile cutter ideal for straight and 45° angle cuts on porcelain, stoneware, tiles and marble. It's new design comes with technical innovation, strength, and precision. It is equipped with a powerful motor, sliding cutting head, and tilting engine.
Features
- Single-phase motor 230V~50Hz 1.4Kw
- Sliding cutting head and tilting engine
- Thermal protection
- Switch with release coil
- Adjustable legs
- Adjustable goniometer fence
- Water recycling pump type S1/4
- Water cooled
| Side Bench Dimensions | 53" x 20.59" (1354 mm × 523 mm) |
| Machine's Dimensions | 69.09" x 26.57" x 51.18" (1755 mm x 675 mm x 1300 mm) |
| Weight | 121.25 lbs (55 kg) |
| Size tile for diagonal cutting | 32.28" x 32.28" (820 mm X 820 mm) |
| Max Cutting Length | 45.67" (1160 mm) |
| Max Cutting Thickness | 2.56" (65 mm) |
| Max Cutting Depth for 45° Cut | 2.09" (53 mm) |
| Max Cutting Depth with 2 Runs | 3.15" (80 mm) |
| Rotation Speed | 2800 rpm |
| Power Engine | 1.8 HP / 1.4 KW |
| Thermic Protection | 338°F (170°C) |
| Engine Type | SINGLE-PHASE 230V~50Hz |
| Tool Hole | 1" (25.4 mm) |
| Diamond Blade Diameter | 9.84" (250 mm) |
| Water Pump | S1/4 |
| Water Tank Capacity | 5.81 - 7.40 Gallons (22 - 28 Liters) |
| Free shipping | Yes |
|---|---|
| Brand | RTC Products |
| MPN | USA661351/B |
| SKU | 450636 |
