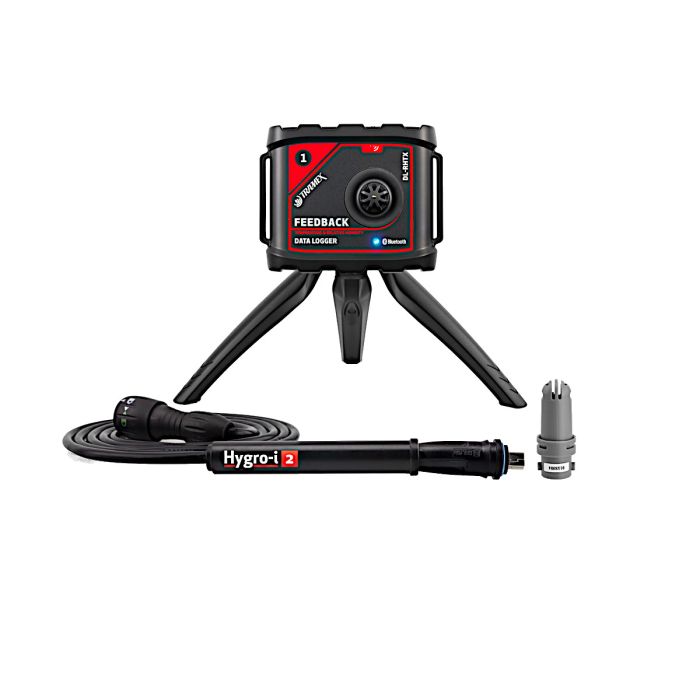

Tramex FBSK5.1 Feedback Data Logger Starter Kit

The FeedBack Datalogger and App can log up to 100,000 data point entries for relative humidity, temperature, dew-point and grains per pound. The intuitive App gives professionals the ability to visualize live readings and time charts, as well as create and export spreadsheets, charts and reports. This starter kit comes with everything you need to get started. Requires a compatible iOS or Android mobile device.

The DL-RHTX Data Logger has a built-in Ambient RH + Temperature sensor (with an optional Plug-in RH + Temperature Sensor & Contact Temperature Probe also available) to provide the best available accuracy tolerances of 1.5%RH & 0.1ºF.

Kit Contents:

• DL-RHTX Data Logger
• Hygro-i2 probe
• Wall mounting
• Tripod Stand

Features:

• Bluetooth BLE enabled for use with mobile devices
• Up to 100,000 data point entries possible
• Instant set up and start modes
• Used to perform ASTM F2170
• Ambient and In-situ RH and temperature logging
• Intuitive and instructive APP interface
• Adjustable interactive chart, spreadsheet, report and easy-export functions
• Connectivity up to 165ft (50 meters) for highly accessible data downloads

Specifications:

• Size: 3.94" x 3.54" x 1.38" (100mm x 90mm x35mm)
• Weight: 3.53oz (100g)
• Construction: ABS enclosure
• Power: 1 x AA type battery 1.5 Volt
• Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
• Logging Rate: Logger interval adjustable between 5 minutes and 1 hour
• Transmission Range: Up to 165ft (50m) line-of-sight
• Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising

Supported measurements:

• Ambient Relative Humidity, Temperature, Dew point, Grains per pound
• In Situ Relative Humidity, Temperature, Dew point, Grains per pound (with optional plug-in RH Probe)
• Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
• Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point

Relative humidity sensor specifications:

• Range: 0 to 100%RH
• Accuracy: ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
• Resolution: 0.1% over the complete range
• Drift: <0.25%RH per year

Temperature sensor specifications:

• Range: -40ºF to 257ºF (-40ºC to 125ºC)
• Accuracy: ±0.1ºF Range 68ºF to 140ºF (±0.1 °C Range 20°C to 60°C)
• Sensor Protection: PTFE Film protects sensor opening from water & dust
• Drift: <0.04ºF (0.03ºC) per year

Contact temperature probe:

• Units: ºF (ºC)
• Temperature Range: -20°F to +175°F (-30°C to +80°C)
• Accuracy: ±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C)
• Resolution: 0.1% over the complete range

Battery:

• Power supply: 1 x AA type battery 1.5 Volt
• Battery life: Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied.
