Wagner Floor Sentry Wood Floor Data Logger
Wagner Floor Sentry Wood Floor Data Logger is available to buy in increments of

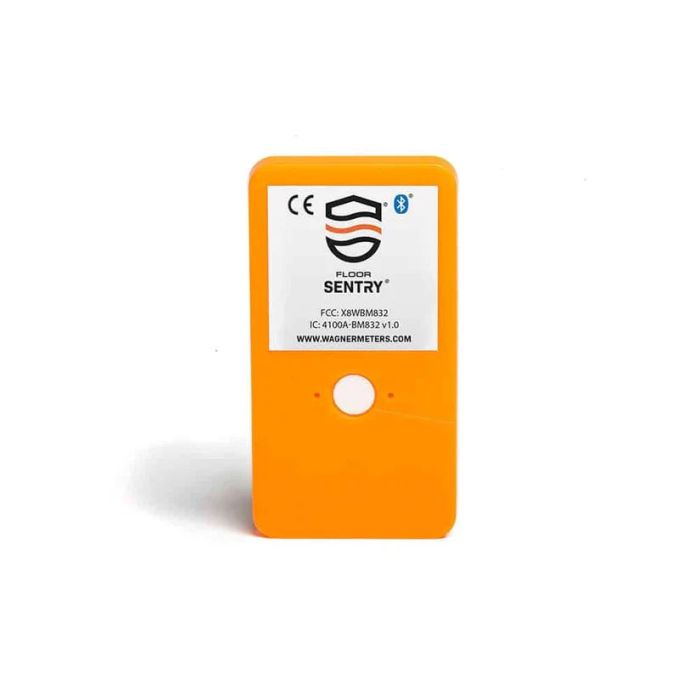

The Floor Sentry embedded wood floor data logger is a card-sized device featuring temperature and relative humidity (RH) sensors to monitor and record internal temperature and RH readings within your wood floor.
Details

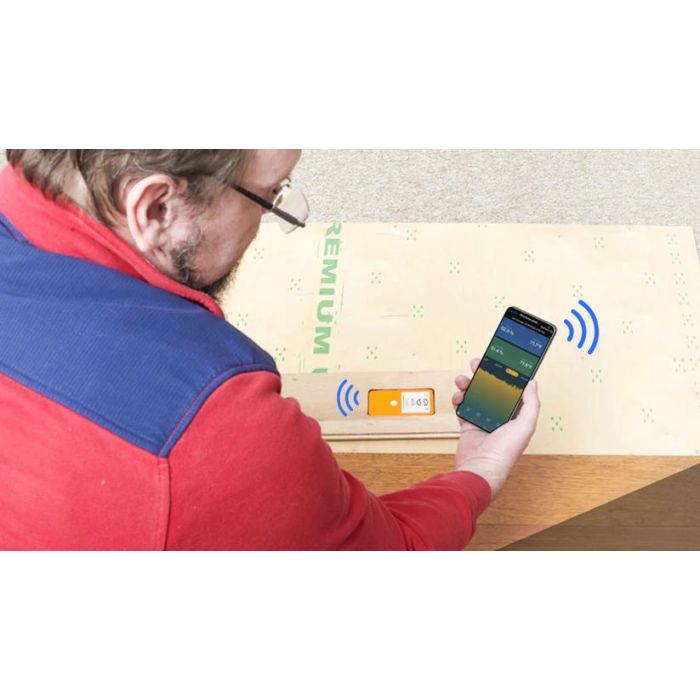

The Floor Sentry® embedded wood floor data logger is a card-sized device featuring temperature and relative humidity (RH) sensors to monitor and record up to 16,000 internal temperature and RH readings within your wood floor as well as the temperature and RH on the surface of the concrete subfloor or underlayment. Floor Sentry connects, via Bluetooth, to the free Wagner Sentry app for instant monitoring of floor or underlayment conditions, setting alarm threshold levels, viewing graphed progress, and more. This device can protect your installation liability and your wood floor investment.
- Top and Bottom Sensors: Measure temperature and relative humidity (RH) within your wood floor and subfloor.
- Smart App Integration: Store, organize, and send readings directly to the free Wagner Sentry app via Bluetooth®. Monitor wood floors effortlessly on your smart device.
- Alerts or Notifications: When RH or temperature is outside the user-defined alarm threshold.
- Data Collection and Storage: Monitor, record, and store over 16,000 internal temperature and relative humidity (RH) readings within your wood floors.
- Long Battery Life: A pre-installed battery that can last up to 8 years (depending on the frequency of logging).
- Comprehensive Wood Floor Monitoring with Smart Logger V2: Pairing your Floor Sentry and Smart Logger V2 to the Wagner Sentry app allows you to view both the in-floor conditions, enabling users to easily view, transmit, record data, and even send reports via email.
- 1-Year Warranty: With Wagner’s 1-year warranty, you can trust the Floor Sentry to deliver consistent, precise readings for years to come.
| Technical Specifications |
| Frequency | 2.4 GHz |
| Protocol | BLE 5 |
| Typical Reading Range | up to 20 ft or 6 meters |
| Dimensions | 51 mm x 95.454 mm x 9 mm |
| Weight | 37.75 g, 1.33 oz |
| Lifetime of Battery Pack | Up to 8 years (depending on frequency of logging) |
| Battery Health Indicator | Monitors battery status within the app |
| Storage Capacity | 16,384 readings |
| Measurement Interval | 1 second to 136 years |
| Mobile App Compatibility | Wagner Sentry App |
| Warranty | 1 year |
| Sensor Specifications |
| Relative Humidity - Accuracy Tolerance | ±3% RH (typ.) |
| Relative Humidity - Resolution | 0.1% RH |
| Temperature - Accuracy Tolerance | ±0.1° C (typ. 20° C to 60° C) |
| Temperature - Resolution | 0.1° C (typ.) |
| Temperature - Repeatability | 0.04° C (high, typ.) |
More Information
| Free shipping | Yes |
|---|---|
| Brand | Wagner Meters |
| MPN | 890-00080-001 |
| SKU | 452486 |
-
