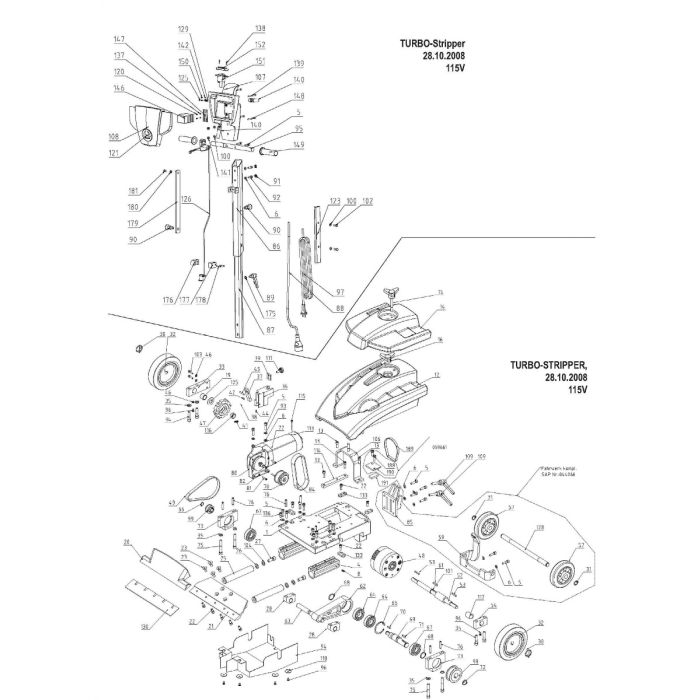

Turbo II Parts List

1 Chassis 015106
2 Suppressor Capacitor 016088
4 Piston block 015054
3 Connecting Block 017623
5 Screw M 8x30 014736
6 Washer, M8 014860
8 Lubricating nipple 014914
9 Connection, Strain Relief 051948
12 Cover 038534
13 Screw M8x25 014735
14 Additional weight 038535
15 Screw M10x80 039234
16 Screw Nut M10 039189
19 Bushing 20x26x20 014909
20 Blade holder 038536
21 Striking foot 015127
22 Screw M8x20 014734
23 Screw M10x25 014763
25 Piston rod 015132
26 Washer M13 014833
27 Screw M12x30 014744
28 Connecting block 015417
30 Wheel pin 014888
31 Washer 014851
32 Drive wheel 015135
33 Gear mounting block 015033
34 Screw M10x45 014741
35 Safety washer M10 014861
36 Clutch holder 040003
37 Clutch stop device 040006
38 Pressure bolt 015120
39 Emergency run unit 043622
41 Pressure spring 040002
42 Pressure Spacer 042681
44 Thread Pin 014791
45 Cylinder pin 014874
46 Washer M6 014859
47 Clutch Disc 015119
48 Gear Block 015140
49 Small drive belt 014938
52 Drive shaft axle 015142
53 Key 5x5x32 014902
54 Gear mounting block left 015036
57 Transport wheel 041888
59 Carriage Bracket 042612
61 Nut key 014904
62 Connecting rod with pin 015144
63 Connecting rod pin only 014875
64 Ball bearing 014710
65 Circlip 014856 REV. 09212015
66 Circlip 014850
67 Ball bearing 014712
68 Circlip 014853
69 Excenter shaft 015145
70 Nut key 014901
71 Key 014903
72 Circlip 014852
73 Bearing block right/left 017079
75 Screw 10x70 014742
76 Cylinder pin 8x40 014876
77 Motor 015056
78 Drive sprocket 015129
79 Motor Power Cord (2 wire) 014973
79 Motor Power Cord (3 wire) 051919
80 Motor plate 016860
81 Screw m5x25 014721
82 Washer m5 014858
84 Large Drive Belt 014937
85 Handle Bracket 038531
86 Outer tube 038508
87 Inner tube 038509
88 Electrical cord short 014974
89 Clamping Lever 038567
90 Arresting bolt 037953
91 Stopper 018800
92 Cylinder screw M8x25 014735
93 Washer M 8 014828
94 Bottom cover 015 154
95 Grip 039233
96 Screw M6x12 014799
97 Power cord long 014970
98 Belt pulley 015155
99 Belt pulley 015156
100 Washer 014828
101 Groove ring 014845
102 Hex Bolt M8x22 018153
103 Screw M6x25 014731
104 Washer M12 014862
105 Starter disc 015164
106 Weight Bracket 042741
107 Switch housing 051915
108 Switch housing cover 038505
109 Clamping lever 038566
113 Motor cover 015130
114 Bracket 038606
115 Screw M5x90 014724
116 Bushing 20x26x11 015141
117 Bushing 20x26x30 014910
118 Washer 014835
123 Cable Pit 039188
125 Cylinder screw M4x12 018284
126 Hydraulic clutch assembly 038837
128 Axle 042739 REV. 09212015
129 Strain Relief 017559
133 Cover 015107
136 Screw M8x16 017651
137 Washer M4 017452
138 Screw 051914
139 Cylinder screw m6x60 018259
140 Fitting 039190
141 Stop nut m8 014816
142 Belt Pulley 014848
146 Contactor 017439
147 Contactor bracket 020969
148 Cylinder screw M6x105 039284
149 Grip covering 038568
150 Screw M4x8 017473
151 Switch 051710
152 Protection cap 051722
175 Washer 017786
176/177/178 Twist lock assembly 015046
178 Screw only 017701
179 Column 051837
180 Lock washer M10 014844
181 Shoulder bolt 021232
188 Bolt 036272
189 Clamping Bracket for motor (not shown) 014943
190 Fastening plate for motor clamp (not shown) 059467
191 Rubber sleeves (not shown) 059469

Without Drawing

Tool Kit 015162
Motor brush set 015152
Bushing for connecting block 014913
Lifting straps 040603
Handle complete 039089

Accessories

Tilt Handle Bracket Complete 042366
182 Handle bracket 042365
183 Support handle bracket 042367
184 Hexagon bolt 042369
185 Clamping lever 042473
186 Spring washer 014844

More Information
SKU	RP-39086

Reviews 1

Shipping

Most orders ship within 1-2 business days. Please allow an additional 2-5 days for standard UPS Ground delivery. If an item qualifies for free ground shipping, this will be noted in the product description. A shipping quote for your order can be seen in the shopping cart and during order review prior to checkout. No post-payment shipping charges will be applied.

Click here to view an estimated Ground Time-In-Transit Map.

Need to expedite an order? Simply choose Next Day or 2 Day shipping during checkout. Expedited orders placed online receive higher priority and will typically ship within 24 hours or by the end of the next business day. In most cases, orders placed before 12:00 PM CST will be shipped the same day. We recommend calling us at (866) 634-1189 to order if you require delivery be a certain date. Delivery estimates provided for online orders are not guaranteed.

Delivery to Alaska, Hawaii and U.S. Territories

We offer both USPS Priority Mail and UPS shipping methods. A shipping quote for your order can be seen in the shopping cart and during order review prior to checkout. Additional lead times may apply.

International Delivery

We ship worldwide. A shipping quote for most lightweight orders can be seen in the shopping cart and during order review prior to checkout. Additional lead times may apply. Please contact us if you need assistance with a freight quote.

For our detailed shipping policy, please click here

Product Name	Qty
4. 15054 Piston Block $120.00
5. 14736 Screw M 8x30 $1.43
6. 14860 Washer M8 $1.43
13/92. 14735 Screw M8x25 $1.43
15. 39234 Screw M10x80 $24.29
16. 39189 Screw Nut M10 $15.71
20. 38536 Blade Holder $95.71
21. 15127 Striking Foot $152.86
22. 14734 Screw M8x20 $1.43
25. 15132 Piston Rods $48.57
26. 14833 Washer M13 $1.43
27. 14744 Screw M12x30 $1.43
30. 14888 Wheel Pin $2.86
31. 14851 Circlip $1.43
32. 15135 Drive Wheel $162.86
35. 14861 Safety washer M10 $1.43
36. 40003 Clutch Holder $65.71
38. 15120 Pressure Bolt $58.80
39. 43622 Emergency Run Unit $55.71
41. 40002 Pressure Spring $1.43
44. 14791 Thread Pin $1.43
45. 14874 Cylinder Pin $1.43
46. 14859 Washer M6 $1.43
49. 14938 Small Drive Belt $11.43
52. 15142 Drive Shaft Axle $60.00
53. 14902 Key 5x5x32 $1.43
61. 14904 Nut Key $1.43
62. 15144 Connecting Rod $90.00
63. 14875 Connecting Rod Pin $11.43
64. 14710 Ball Bearing $24.29
65. 14856 Circlip $1.43
66. 14850 Circlip $1.43
67. 14712 Ball Bearing $24.29
68. 14853 Circlip $1.43
69. 15145 Excenter Shaft $75.71
70. 14901 Nut Key $1.43
71. 14903 Key $1.43
72. 14852 Circlip $1.43
73. 17079 Bearing Block $34.29
75. 14742 Screw 10x70 $2.86
76. 14876 Cylinder pin 8x40 $1.43
77. 15056 Motor $1,270.00
78. 15129 Drive Sprocket $42.86
80. 16860 Motor Plate $48.57
82. 14858 Washer m5 $1.43
84. 14937 Large Drive Belt $20.00
89. 38567 Clamping Lever $22.86
90. 37953 Arresting Bolt $21.43
93/100. 14828 Washer M8 $1.43
94. 15154 Bottom Cover $138.57
96. 14799 Screw M6x12 $1.43
97. 14970 Power Cord Long $64.29
98. 15155 Belt Pulley $38.57
99. 15156 Belt Pulley $25.71
101. 14845 Groove Ring $7.14
104. 14862 Washer M12 $1.43
106. 42741 Weight Bracket $72.86
109. 38566 Clamping Lever $24.29
118. 14835 Washer $1.43
126. 38837 Hydraulic Clutch Assembly $321.43
133. 15107 Cover $5.71
146. 17439 Contactor $157.14
151. 51710 Switch $117.14
176/177/178. 15046 Twist Lock Assembly $47.14
189. 14943 Clamping Bracket $35.63
15152 Motor Brush Set $35.71
42366 Tilt Handle Bracket Complete $410.00

Wolff Turbo Stripper Parts
