Noble Pro-Slope 40" x 80" Tub Replacement Kit

The Pro-Slope creates the code require slope under the pan liner in a full mortar bed shower installation. Easily extend or trim to fit your shower configuration. Saves time - light and easy to cut.

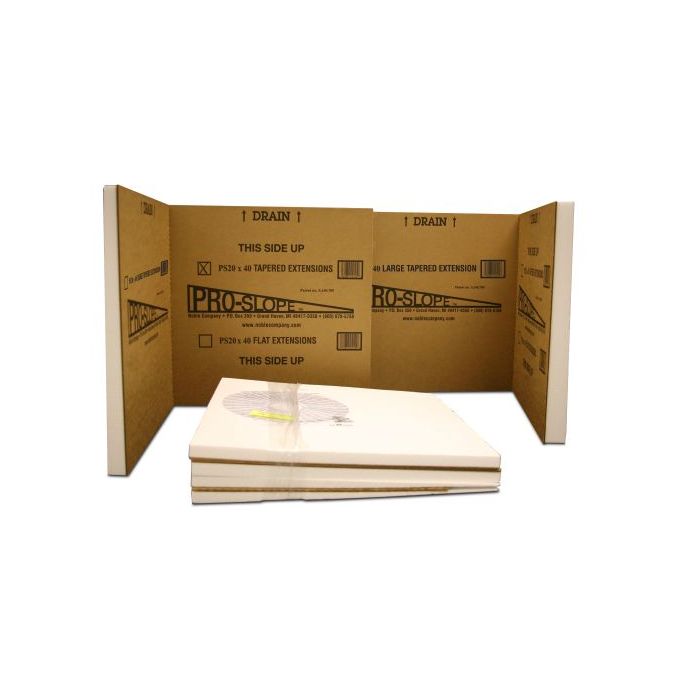

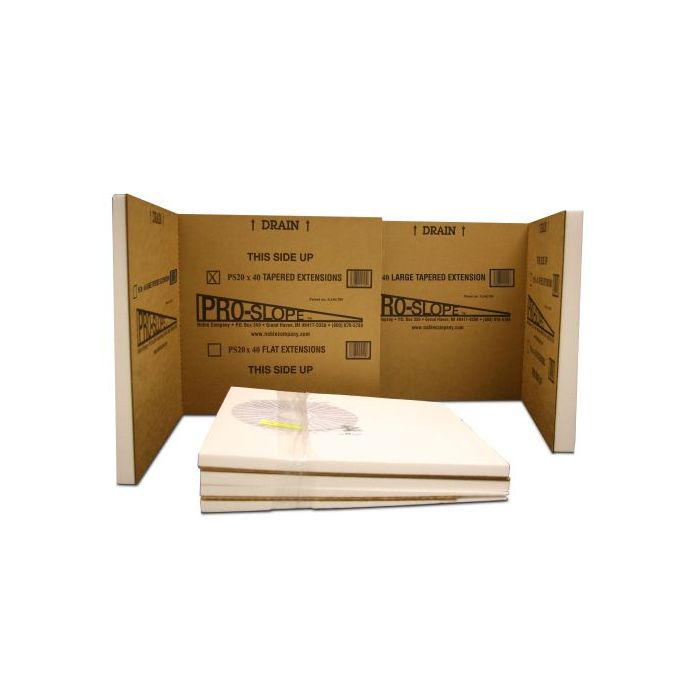

Each Pro-Slope 40" x 80" Tub Replacement Kit consists of 1 preformed 40" x 40" composite that is sloped in all directions to the center, 1 Small (Thin) 20" x 40" Tapered Extension, 1 Large (Thick) 20" x 40" Tapered Extension, a Positive Weep Protector and instructions.

• Slope allows moisture to drain
• Eliminates the cause of mold, fungus & odor
• Saves time - light and easy to cut
• Extend or trim to fit shower configuration
• No mortar, no mixing, no curing
• Durable - Made from non-deteriorating EPS
• Rated at 500 lbs per square foot

Applications

Showers: PRO-SLOPE provides the code-required slope to weep holes in a clamping ring drain in the shower receptor. Install PRO-SLOPE under a reinforced mud bed (which is generally 1-1/4" thick mixture of a 1:4 mix of portland cement to sand).

NOTE: A sheet membrane like Chloraloy must be installed over PRO-SLOPE.
