Invisabolt Floating Bench Mounting System (2 Pack)

In stock
SKU
294445
$53.00
Free shipping available
|

This unique bolt mounting system is designed for use with the Adjustable Better Bench (BB-ADJR) to achieve a floating shower bench that is completely free of any visible end supports.

Details

This unique bolt mounting system is designed for use with the Adjustable Better Bench (BB-ADJR) to achieve a floating shower bench that is completely free of any visible end supports.

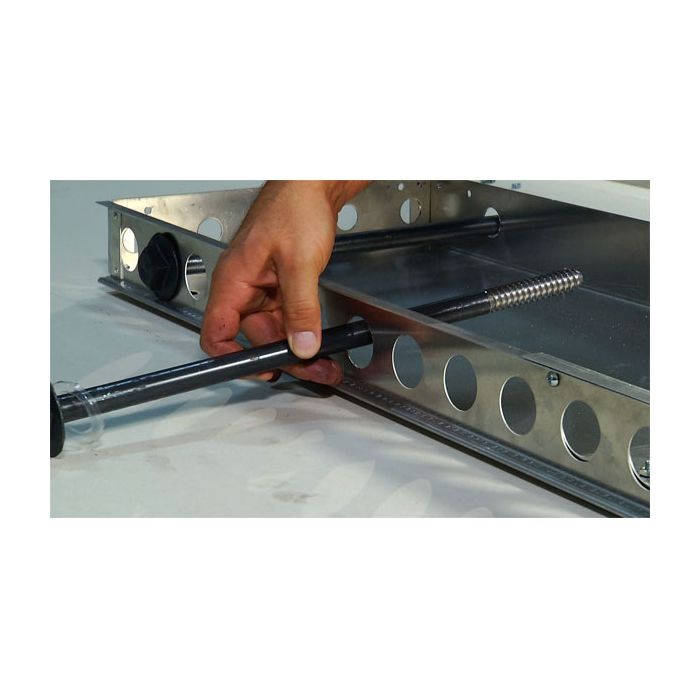

This is done by simply inserting several of the Invisabolts through the holes in the back of the unit prior to filling the bench with mortar.

Mounting to a 2x6 stud wall is recommended; Minimum 2x4 stud wall with a direct ceiling connection is required.

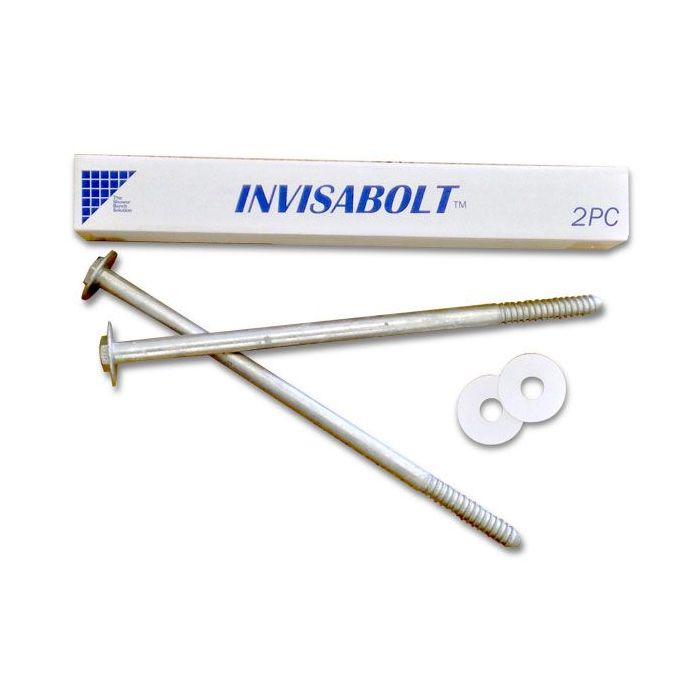

Sold Two (2) 3/4" x 17.5" Invisabolts per package.

To determine Invisabolt support requirement:

  • Mounting wall to wall up to 36": No additional support required
  • Mounting wall to wall up to 63" Two (2) required
  • Mounting on back wall and one side wall up to 36": Two (2) required
  • Mounting on back wall and one side wall up to 63" Three (3) required
  • Mounting with no side support up to 36": Two (2) required
  • Mounting with no side support up to 48": Three (3) required
  • Mounting with no side support up to 63" max span: Four (4) required

More Information

More Information
BrandInnovis
ModelINVISABOLT
SKU294445
Free shippingYes
