Traxx CSR-C3224448-3 1" x 24" x 48" Super Shims (3 Pack)

In stock

The ADA compliant Super Shim provides the solution for EXTREME HEIGHTS between carpet and hard surfaces such as marble or stone. This ramp is 48" wide by 24" long and 1" thick at the high side. Super Shim is engineered to be installed where there is a rise of 1-1/4" to 1-1/2" between the sub-floor and hard surface. NO ONE has a better solution for this EXTREME HEIGHT application.

Sold per box of 3 shims.

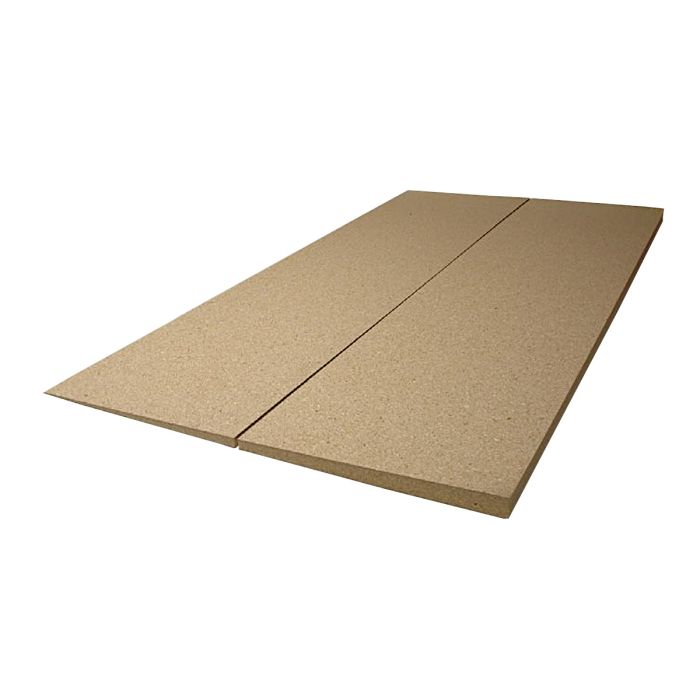

Super Shims composite board ramps consist of 2 pieces. The first piece starts at 1" and tapers to 1/2" in 12" and the second piece continues from 1/2" to the sub-floor. Carpet Shims Super Shims meet and/or exceed ADA (American Disability Act) transition requirements, while providing an extremely gentle taper from the hard surface to the sub-floor. Universal Side Shims are available for the Super Shims.

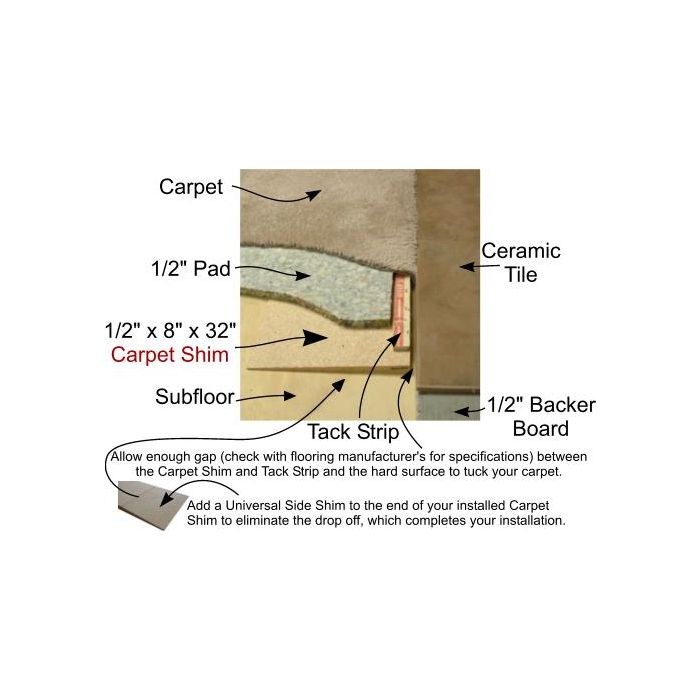

Installing Carpet Shims:
Determine the width of the opening. On the rough side of the Carpet Shim, using a carpet knife, score the shim three or four times at the needed length and snap it. Place the shim in the opening with the smooth side up and the high side toward the hard surface, leaving a *1/4" gap between the shim and the hard surface. Centered and evenly spaced, nail at least 5 ring shank nails per 32” of Carpet Shim. Place a Universal Side Shim at each side of the Carpet Shim and nail all four corners securely to the floor. Install the tack strip on top of the Carpet Shim maintaining the *1/4" gap. Install your pad and carpet, tucking the carpet into the 1/4" gap. It is that simple!

*Regarding the 1/4" gap, when extremely thick or thin carpet is being installed, adjust the gap accordingly. Also refer to hard surface manufacturer's recommendations.

Carpet Shims’ products may be attached to the floor using a good adhesive.
